ACT2813C - 5V/2.4A Power Bank Solution

Download the ACT2813C datasheet PDF (ACT2813-Active included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 5v/2.4a power bank solution.

Description

ACT2813/ACT2813C is a space-saving and highperformance low-profile single-chip solution for backup battery pack and standalone battery charger.

ACT2813/ACT2813C integrates all the functions that a backup battery pack needs, including switching charger, boost converter and LED indication.

Features

  • Dedicated Single Chip Solution for Mobile Power With Minimal Component Count.
  • 2.4A Continuous Output Current in Boost Mode.
  • 2.4A Switching Charger Current.
  • 96% Boost Efficiency (Vbat=4.1V).
  • Adaptive to 10mA-2400mA Input Sources.
  • Battery Disconnection at Output Short.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ACT2813-Active-Semi.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ACT2813C
Manufacturer Active-Semi
File Size 639.39 KB
Description 5V/2.4A Power Bank Solution
Datasheet download datasheet ACT2813C Datasheet

📁 Similar Datasheet

  • ACT2813 - 5V/2.4A Power Bank Solution (Qorvo)
  • ACT28 - Triode (Marconi)
  • ACT2801 - 5V/1.5A Backup Battery Pack Manager (qorvo)
  • ACT2801B - 5V/1.5A Backup Battery Pack Manager (qorvo)
  • ACT2802 - 5V/2.5A Backup Battery Pack Manager (qorvo)
  • ACT2802B - 5V/2.5A Backup Battery Pack Manager (qorvo)
  • ACT2803 - 5V/2.4A Dual Cell Battery Power Manager (Qorvo)
  • ACT2804 - Dual Cell Battery Power Manager (qorvo)
  • ACT28A - Pulse Oscillator Triode (Marconi)
  • ACT200 - Miniature surface mount (ETC)
Other Datasheets by Active-Semi
  • ACT2813 - 5V/2.4A Power Bank Solution
  • ACT2801 - 5V/1.5A Backup Battery Pack Manager
  • ACT2801B - 5V/1.5A Backup Battery Manager
  • ACT2801C - 5V/1.5A Backup Battery Manager
  • ACT2802 - 5V/2.5A Backup Battery Pack Manager
  • ACT2802B - 5V/2.5A Backup Battery Pack Manager
  • ACT2802C - 5V/2.5A Backup Battery Pack Manager
  • ACT2803 - 5V/2.4A Dual Cell Battery Power Manager

Full PDF Text Transcription

Click to expand full text

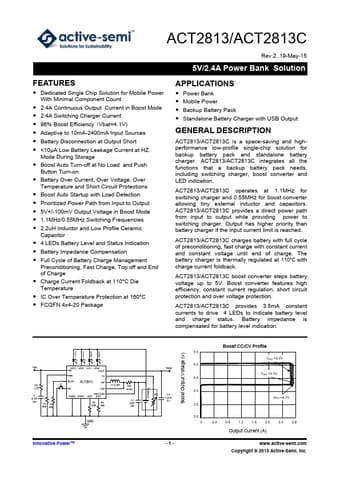

ACT2813/ACT2813C FEATURES • Dedicated Single Chip Solution for Mobile Power With Minimal Component Count • 2.4A Continuous Output Current in Boost Mode • 2.4A Switching Charger Current • 96% Boost Efficiency (Vbat=4.1V) • Adaptive to 10mA-2400mA Input Sources • Battery Disconnection at Output Short • <10µA Low Battery Leakage Current at HZ Mode During Storage • Boost Auto Turn-off at No Load and Push Button Turn-on • Battery Over Current, Over Voltage, Over Temperature and Short Circuit Protections • Boost Auto Startup with Load Detection • Prioritized Power Path from Input to Output • 5V+/-100mV Output Voltage in Boost Mode • 1.1MHz/0.55MHz Switching Frequencies • 2.
