ACT2801C, ACT2801-Active - 5V/1.5A Backup Battery Manager

Active-Semi

📥 Download Datasheet

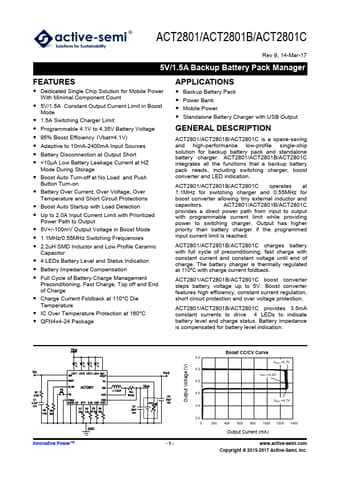

ACT2801C Datasheet Preview — This datasheet PDF includes multiple part numbers: ACT2801C, ACT2801-Active. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ACT2801C, ACT2801-Active
Manufacturer	Active-Semi
File Size	2.14 MB
Description	5V/1.5A Backup Battery Manager
Datasheet	ACT2801-Active-Semi.pdf
Note	This datasheet PDF includes multiple part numbers: ACT2801C, ACT2801-Active. Please refer to the document for exact specifications by model.

ACT2801C Product details

Features

Dedicated Single Chip Solution for Mobile Power With Minimal Component Count.
5V/1.5A Constant Output Current Limit in Boost Mode.
1.5A Switching Charger Limit.
Programmable 4.1V to 4.35V Battery Voltage.
95% Boost Efficiency (Vbat=4.1V).
Adaptive to 10mA-2400mA Input Sources.
Battery Disconnection at Output Short.
