AX3504A, AX3504 - 2A Synchronous Step-Down Converter

AX3504A Description

AX3504/A 1.2MHz, 2A Synchronous Step-Down Converter ™ GENERAL .
The AX3504/A is a 1.

AX3504A Features

* 2.5V to 5.5V Input Voltage Range Output Voltages from 0.6V to VIN High Efficiency: Up to 95% 1.2MHz Constant Frequency Operation 2A Output Current No Schottky Diode Required Low RDS(ON) Internal Switches: 0.15Ω Current Mode Operation for Excellent Line and Load Transient Response Current limit, Enab

AX3504A Applications

* The AX3504/A can supply up to 2A output load current from a 2.5V to 5.5V input voltage and the output voltage can be regulated as low as 0.6V. The high switching frequency minimizes the size of external components while keeping switching losses low. The internal slope compensation setting allows th

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AX3504A, AX3504. Please refer to the document for exact specifications by model.

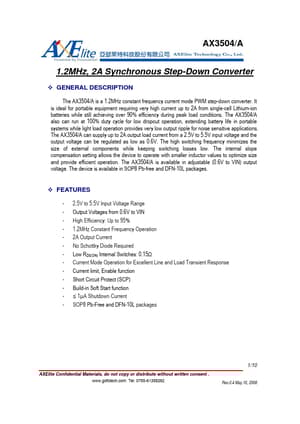

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX3504A, AX3504
Manufacturer
AXElite
File Size
456.09 KB
Datasheet
AX3504-AXElite.pdf
Description
2A Synchronous Step-Down Converter
Note
This datasheet PDF includes multiple part numbers: AX3504A, AX3504.
Please refer to the document for exact specifications by model.
