AX3003 - 3A PWM Buck DC/DC Converter

AX3003 Description

AX3003 150KHz, 3A PWM Buck DC/DC Converter ™ GENERAL .
The AX3003 series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor.

AX3003 Features

* - Output voltage: 3.3V, 5V, 12V and adjustable output version. - Adjustable version output voltage range, 1.23V to 19.5V. - 150KHz fixed switching frequency. - Voltage mode non-synchronous PWM control. - Thermal-shutdown and current-limit protection. - ON/OFF shutdown control input. - Short Circuit

📥 Download Datasheet

Preview of AX3003 PDF

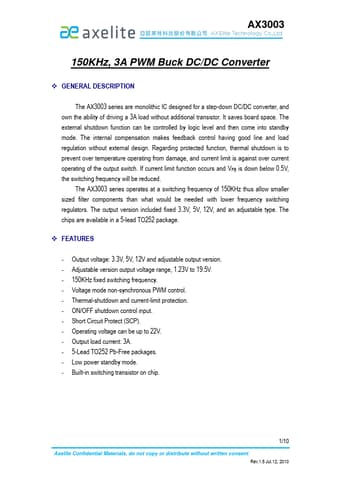

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX3003
Manufacturer
Axelite
File Size
543.92 KB
Datasheet
AX3003_Axelite.pdf
Description
3A PWM Buck DC/DC Converter
