AX3512 - 600mA Synchronous Step-Down Converter

AX3512 Description

AX3512 1.4MHz, 600mA Synchronous Step-Down Converter  GENERAL .
AX3512 is a high efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture.

AX3512 Features

* 2.5V to 5.5V Input Voltage Range Output Voltage from 0.6V to VIN High Efficiency: Up to 95% 1.4MHz Constant Frequency Operation Up to 600mA Output Current Quiescent Current: 250uA (Typical) No Schottky Diode Required Current Mode Operation for Excellent Line and Load Transient Response Current limit

AX3512 Applications

* 100% duty cycle provides low dropout operation, extending battery life in portable systems. PWM operation provides very low output ripple voltage for noise sensitive applications. Switching frequency is internally set at 1.4MHz, allowing the use of small surface mount inductors and capacitors. The

📥 Download Datasheet

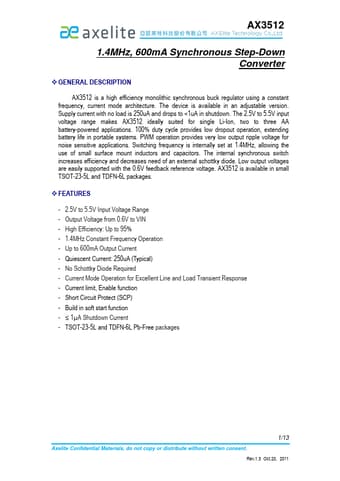

Preview of AX3512 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AX3512
Manufacturer
AXElite
File Size
593.43 KB
Datasheet
AX3512-Axelite.pdf
Description
600mA Synchronous Step-Down Converter
