HSMF-C158, HSMF-C153 Bi-color Surface Mount Chip LEDs

AVAGO

Description

HSMF-C153/C155/C156/C157/C158 Bi-color Surface Mount Chip LEDs Data Sheet .
The HSMF-C15x series of bicolor chip-type LEDs is designed in an industry standard package for ease of handling and use.

📥 Download Datasheet

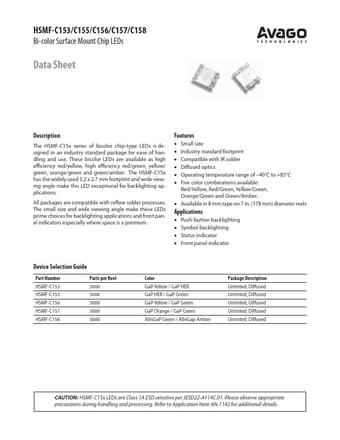

HSMF-C158 Datasheet Preview — This datasheet PDF includes multiple part numbers: HSMF-C158, HSMF-C153. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HSMF-C158, HSMF-C153
Manufacturer: AVAGO
File Size: 127.62 KB
Datasheet: HSMF-C153-AVAGO.pdf
Description: Bi-color Surface Mount Chip LEDs
Note: This datasheet PDF includes multiple part numbers: HSMF-C158, HSMF-C153.
Please refer to the document for exact specifications by model.

Features

* x Small size x Industry standard footprint x Compatible with IR solder x Diffused optics x Operating temperature range of
* 40°C to +85°C x Five color combinations available: Red/Yellow, Red/Green, Yellow/Green, Orange/Green and Green/Amber. x Available in 8 mm tape on 7 in. (178 mm) diameter
