HSMF-C164, HSMF-C16x Miniature Bi-Color Surface Mount ChipLEDs

HSMF-C164 Description

HSMF-C16x Miniature Bi-Color Surface Mount ChipLEDs Data Sheet .
This series of bi-color ChipLEDs is designed with the smallest footprint to achieve high density of components on board.

HSMF-C164 Features

* Small size
* 0603 industry standard footprint
* Diffused optics
* Operating temperature range of
* 40° C to +85° C
* Compatible with reflow soldering
* Available in various color combination
* Available in 8 mm tape on 7" (178 m

HSMF-C164 Applications

* Keypad backlighting
* Symbol indicator
* LCD backlighting
* Pushbutton backlighting
* Front panel indicator Device Selection Guide Part Number HSMF-C162 HSMF-C163 HSMF-C164 HSMF-C165 HSMF-C166 HSMF-C167 HSMF-C168 HSMF-C169 Color AlInGaP Re

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HSMF-C164, HSMF-C16x. Please refer to the document for exact specifications by model.

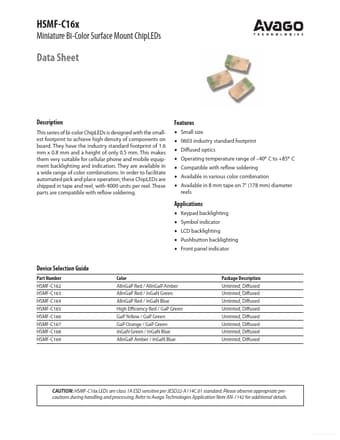

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HSMF-C164, HSMF-C16x
Manufacturer
Avago
File Size
498.32 KB
Datasheet
HSMF-C16x-Avago.pdf
Description
Miniature Bi-Color Surface Mount ChipLEDs
Note
This datasheet PDF includes multiple part numbers: HSMF-C164, HSMF-C16x.
Please refer to the document for exact specifications by model.
