HSMF-C162, HSMF-C16x Datasheet - Avago

HSMF-C162 Miniature Bi-Color Surface Mount ChipLEDs

This series of bi-color ChipLEDs is designed with the smallest footprint to achieve high density of components on board. They have the industry standard footprint of 1.6 mm x 0.8 mm and a height of only 0.5 mm. This makes them very suitable for cellular phone and mobile equipment backlighting and in.

HSMF-C162 Features

* Small size

* 0603 industry standard footprint

* Diffused optics

* Operating temperature range of

* 40° C to +85° C

* Compatible with reflow soldering

* Available in various color combination

* Available in 8 mm tape on 7" (178 m

HSMF-C16x-Avago.pdf

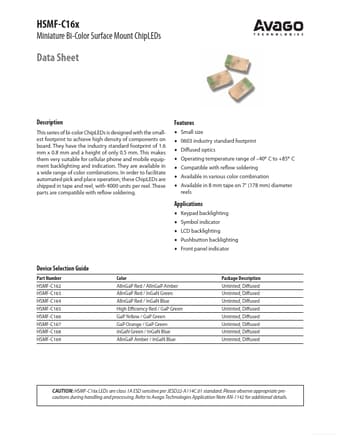

HSMF-C162 Datasheet Preview — This datasheet PDF includes multiple part numbers: HSMF-C162, HSMF-C16x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HSMF-C162, HSMF-C16x

Manufacturer:

Avago

File Size:

498.32 KB

Description:

Miniature bi-color surface mount chipleds.

Note:

This datasheet PDF includes multiple part numbers: HSMF-C162, HSMF-C16x.
Please refer to the document for exact specifications by model.
