ADNS-5060 - Optical Mouse Sensor

AVAGO

The ADNS-5060 by AVAGO is a Optical Mouse Sensor. Below is the official datasheet preview.

📥 Download Datasheet

ADNS-5060 Optical Mouse Sensor by AVAGO - Datasheet Preview — Official preview page of the ADNS-5060 Optical Mouse Sensor datasheet (AVAGO).

Datasheet Details

Part number	ADNS-5060
Manufacturer	AVAGO
File Size	903.31 KB
Description	Optical Mouse Sensor
Datasheet	ADNS-5060-AVOGO.pdf

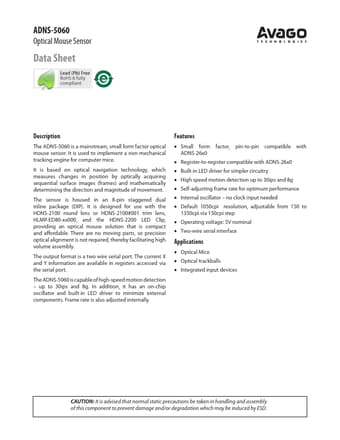

Additional preview pages of the ADNS-5060 datasheet.

ADNS-5060 Product details

Description

The ADNS-5060 is a mainstream, small form factor optical mouse sensor.

Features

Small form factor, pin-to-pin compatible with ADNS-26x0.
Register-to-register compatible with ADNS-26x0.
Built-in LED driver for simpler circuitry.
High speed motion detection up to 30ips and 8g.
Self-adjusting frame rate for optimum performance.
Internal oscillator.
no clock input needed.
Default 1050cpi resolution, adjustable from 150 to 1350cpi via 150cpi step.
Operating voltage: 5V nominal.
Two-wire se.
