ADNS-5110-001 - Trim Lens for LED Mouse

AVAGO TECHNOLOGIES

The ADNS-5110-001 by AVAGO TECHNOLOGIES is a Trim Lens for LED Mouse. Below is the official datasheet preview.

Datasheet Details

Part number	ADNS-5110-001
Manufacturer	AVAGO TECHNOLOGIES
File Size	98.98 KB
Description	Trim Lens for LED Mouse
Datasheet	ADNS-5110-001-AVAGOTECHNOLOGIES.pdf

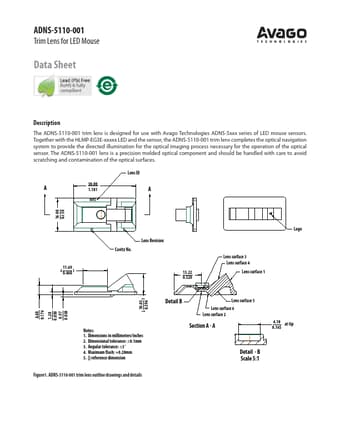

Additional preview pages of the ADNS-5110-001 datasheet.

The ADNS-5110-001 trim lens is designed for use with Avago Technologies ADNS-5xxx series of LED mouse sensors.

and lens are available. These features are useful in maintaining proper positioning and alignment of the ADNS-5110-001 trim lens in the optical system assembly of the mouse. These file can be obtained by downloading from Avago Technologies website or by contacting your local Avago Technologies sales representative. LED LED Clip Sensor Customer supplied PCB ADNS-5110-001 Customer supplied base plate with recommended alignment features per IGES drawing Figure 3. Exploded View of the Optical System.
