ADNS-6010 - Laser Mouse Sensor

Description

The Avago Technologies ADNS-6010 sensor along with the ADNS-6120 or ADNS-6130-001 lens, ADNS-6230001 clip and ADNV-6340 laser diode form a complete and compact laser mouse tracking system.

It is the world’s first laser-illuminated systems enabled for high performance navigation.

Features

  • x High speed motion detection.
  • up to 45 ips and 20g x New LaserStream architecture for greatly improved optical navigation technology x Programmable frame rate over 7080 frames per second x SmartSpeed self-adjusting frame rate for optimum performance x Serial port burst mode for fast data transfer x 400, 800, 1600 or 2000 cpi selectable resolution x Single 3.3 volt power supply x Four-wire serial port along with Power Down, and Reset pins x Laser fault detect circuitry on-chip for Eye S.

📥 Download Datasheet

Datasheet Details

Part number ADNS-6010
Manufacturer AVAGO
File Size 384.53 KB
Description Laser Mouse Sensor
Datasheet download datasheet ADNS-6010 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ADNS-2001 Optical Mouse Sensor Agilent Technologies
ADNS-2030 Optical Mouse Sensor Agilent Technologies
ADNS-2051 Optical Mouse Sensor Agilent Technologies
ADNS-2080 Low Power Optical Mouse Sensor PixArt
ADNS-2080 Low Power Optical Mouse Sensor Avago Technologies

Other Datasheets by AVAGO

Part Number Description
ADNS-6000 Laser Mouse Sensor
ADNS-6120 Laser Mouse Round Lens
ADNS-6130-001 Laser Mouse Trim Lens
ADNS-6150 Small Form Factor Lens
ADNS-6230-001 Laser Mouse VCSEL Assembly Clip

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

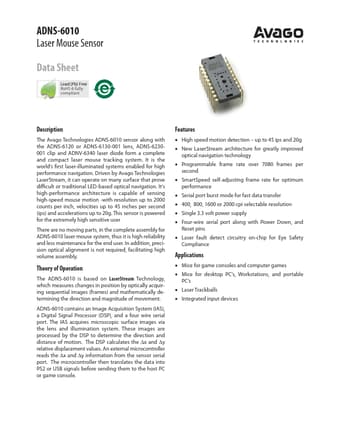

ADNS-6010 Laser Mouse Sensor Data Sheet Description The Avago Technologies ADNS-6010 sensor along with the ADNS-6120 or ADNS-6130-001 lens, ADNS-6230001 clip and ADNV-6340 laser diode form a complete and compact laser mouse tracking system. It is the world’s first laser-illuminated systems enabled for high performance navigation. Driven by Avago Technologies LaserStream, it can operate on many surface that prove difficult or traditional LED-based optical navigation. It’s high-performance architecture is capable of sensing high-speed mouse motion -with resolution up to 2000 counts per inch, velocities up to 45 inches per second (ips) and accelerations up to 20g.
