ASMT-FG10-NFJ00 Surface Mount AF Lamp

AVAGO TECHNOLOGIES

ASMT-FG10-NFJ00 Description

ASMT-FG10-NFJ00 Surface Mount AF Lamp Data Sheet .
www. Smooth, Consistent Narrow Radiation Pattern. 6° View Angle. 4.

ASMT-FG10-NFJ00 Features

* Smooth, Consistent Narrow Radiation Pattern
* 6° View Angle
* 4.8 L x 4.8 X 5.33H mm Package Dimension
* Good Intensity Output
* Compatible with 2x Solder Reflow
* Available in 16mm tape on 15inch (380mm) Diameter reels
* Clear, Non-di

ASMT-FG10-NFJ00 Applications

* that require long distance illumination and narrow beam pattern such as auxiliary flash for autofocus function in digital still camera etc. In order to facilitate pick and place operation, this SMT Lamp is shipped in tape and reel, with 1000 units per reel. This package is compatible with Pb-free 2x

📥 Download Datasheet

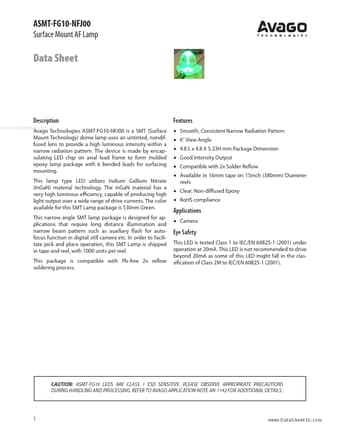

ASMT-FG10-NFJ00 Datasheet Preview — Preview of ASMT-FG10-NFJ00 PDF

Datasheet Details

Part number: ASMT-FG10-NFJ00
Manufacturer: AVAGO TECHNOLOGIES
File Size: 334.30 KB
Datasheet: ASMT-FG10-NFJ00_AVAGOTECHNOLOGIES.pdf
Description: Surface Mount AF Lamp
