ASMT-MG00-NGJ00 - Mid- and High-Power LEDs

Download the ASMT-MG00-NGJ00 datasheet PDF (ASMT-QWBE-NFH0E included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for mid- and high-power leds.

Description

The superior design of this high-reliability LED package is based on the industry standard PLCC-4 platform (3.2x2.8x1.9mm) and enables a higher drive current of 150mA.

Features

Decorative and mood lighting.
Channel and counter lighting.
Advertisement panel backlighting.
Battery powered reading lamps and flashlights.
Interior automotive: Dome, map, and reading lamps, glove compartment illumination.
Exterior automotive: Tail lights and side repeater.
Display backlighting.
Signage.
0.5 Watt mid-power enhanced PLCC-4 package.
Thermal Resistance: 60 K/W.
High j.

📥 Download Datasheet

ASMT-MG00-NGJ00 mid- and high-power leds by AVAGO TECHNOLOGIES - Datasheet Preview — Note: The manufacturer provides a single datasheet file (ASMT-QWBE-NFH0E-AVAGOTECHNOLOGIES.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	ASMT-MG00-NGJ00
Manufacturer	AVAGO TECHNOLOGIES
File Size	2.55 MB
Description	Mid- and High-Power LEDs
Datasheet	ASMT-MG00-NGJ00 Datasheet

📁 Similar Datasheet

ASMT-MG00 - 1W Power LED Light Source (Avago)

ASMT-M006 - Collimator Lens Option (Avago)

ASMT-M015 - Collimator Lens Option (Avago)

ASMT-M030 - Collimator Lens Option (Avago)

ASMT-MA00-AGH00 - 1W Power LED Light Source (Avago)

ASMT-MB00 - 1W Power LED Light Source (Avago)

ASMT-MR00-AGH00 - 1W Power LED Light Source (Avago)

ASMT-MR00-AHJ00 - 1W Power LED (Avago)

ASMT-MW00 - 1W Power LED Light Source (Avago)

ASMT-MWB1 - 1W Diffused Power LED Light Source (Avago)

Full PDF Text Transcription

Click to expand full text

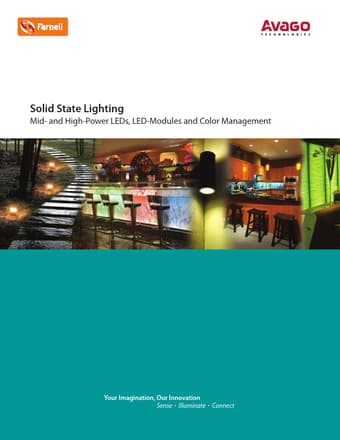

Solid State Lighting Mid- and High-Power LEDs, LED-Modules and Color Management Your Imagination, Our Innovation Sense • Illuminate • Connect Free Datasheet http://www.datasheetlist.com/ Solid-State Lighting Mid- and High-Power LEDs 0.5 Watt Mid-Power PLCC-4 Surface Mount LEDs Description The superior design of this high-reliability LED package is based on the industry standard PLCC-4 platform (3.2x2.8x1.9mm) and enables a higher drive current of 150mA. Higher drive current is possible due to the enhanced heat dissipation capability which also allows you to operate the LED at up to +110°C ambient temperature.
