Datasheet Details
| Part number | SUT487J |
|---|---|
| Manufacturer | AUK |
| File Size | 221.13 KB |
| Description | Epitaxial Planar Type PNP Silicon Transistor |
| Datasheet |
 SUT487J-AUK.pdf
|
| Part number | SUT487J |
|---|---|
| Manufacturer | AUK |
| File Size | 221.13 KB |
| Description | Epitaxial Planar Type PNP Silicon Transistor |
| Datasheet |
SUT487J-AUK.pdf
|

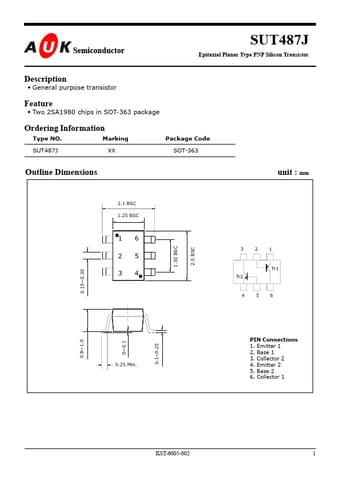

General purpose transistor Feature Two 2SA1980 chips in SOT-363 package Ordering Information Type NO.Marking Package Code SUT487J XX SOT-363 Outline Dimensions unit : mm 0.15~0.30 1.30 BSC 2.0 BSC 2.1 BSC 1.25 BSC 16 25 34 3 21 Tr1 Tr2 4 56 0.8~1.0 0~0.1 0.1~0.25 0.25 Min.PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-6005-002 1 Absolute maximum ratings (Tr1, Tr2 : PNP) Characteristic Symbol Collector-Ba
