Datasheet Details
| Part number | SUT486J |
|---|---|
| Manufacturer | AUK |
| File Size | 214.65 KB |
| Description | Epitaxial Planar type NPN Silicon Transistor |
| Datasheet |
 SUT486J-AUK.pdf
|
| Part number | SUT486J |
|---|---|
| Manufacturer | AUK |
| File Size | 214.65 KB |
| Description | Epitaxial Planar type NPN Silicon Transistor |
| Datasheet |
SUT486J-AUK.pdf
|

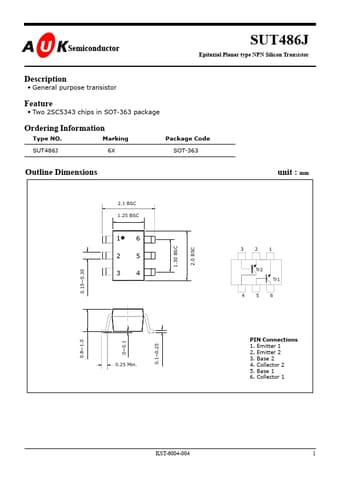

General purpose transistor Feature Two 2SC5343 chips in SOT-363 package Ordering Information Type NO.Marking Package Code SUT486J 6X SOT-363 Outline Dimensions unit : mm 0.15~0.30 1.30 BSC 2.0 BSC 2.1 BSC 1.25 BSC 16 25 34 3 21 Tr2 Tr1 4 56 0.8~1.0 0~0.1 0.1~0.25 0.25 Min.PIN Connections 1. Emitter 1 2. Emitter 2 3. Base 2 4. Collector 2 5. Base 1 6. Collector 1 KST-6004-004 1 Absolute maximum ratings (Tr1, Tr2 : NPN) Characteristic Symbol Collector-Ba
