Datasheet Details
| Part number | SUT485J |
|---|---|
| Manufacturer | AUK |
| File Size | 214.73 KB |
| Description | Epitaxial Planar type NPN Silicon Transistor |
| Datasheet |
 SUT485J-AUK.pdf
|
| Part number | SUT485J |
|---|---|
| Manufacturer | AUK |
| File Size | 214.73 KB |
| Description | Epitaxial Planar type NPN Silicon Transistor |
| Datasheet |
SUT485J-AUK.pdf
|

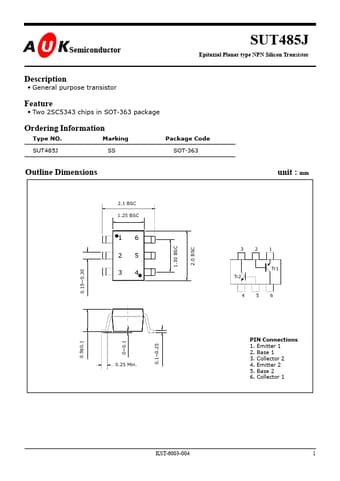

General purpose transistor Feature Two 2SC5343 chips in SOT-363 package Ordering Information Type NO.Marking Package Code SUT485J SS SOT-363 Outline Dimensions unit : mm 0.15~0.30 1.30 BSC 2.0 BSC 2.1 BSC 1.25 BSC 16 25 34 3 21 Tr1 Tr2 4 56 0.9±0.1 0~0.1 0.1~0.25 0.25 Min.PIN Connections 1. Emitter 1 2. Base 1 3. Collector 2 4. Emitter 2 5. Base 2 6. Collector 1 KST-6003-004 1 Absolute maximum ratings (Tr1, Tr2 : NPN) Characteristic Symbol Collector-Ba
