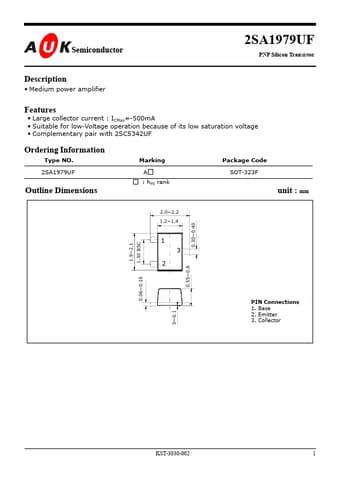

2SA1979UF - PNP Silicon Transistor

Name: 2SA1979UF
SKU: 2SA1979UF-73758

AUK corp

Datasheet Details

Medium power amplifier

Large collector current : ICMax=-500mA.
Suitable for low-Voltage operation because of its low saturation voltage.
Complementary pair with 2SC5342UF Ordering Information Type NO. 2SA1979UF Marking A : hFE rank Package Code SOT-323F Outline Dimensions unit : mm 2.0~2.2 0.30~0.40 0.55~0.8 1.2~1.4 1.30 BSC 1.9~2.1 1 3 2 0.06~0.16 KST-3030-002 0~0.1 PIN Connections 1. Base 2. Emitter 3. Collector 1 2SA1979UF Absolute maximum ratings Characteristic Collector-Ba.
