2SA1979S - PNP Silicon Transistor

Name: 2SA1979S
SKU: 2SA1979S-73755

AUK corp

The 2SA1979S by AUK corp is a PNP Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	2SA1979S
Manufacturer	AUK corp
File Size	231.64 KB
Description	PNP Silicon Transistor
Datasheet	2SA1979S_AUKcorp.pdf

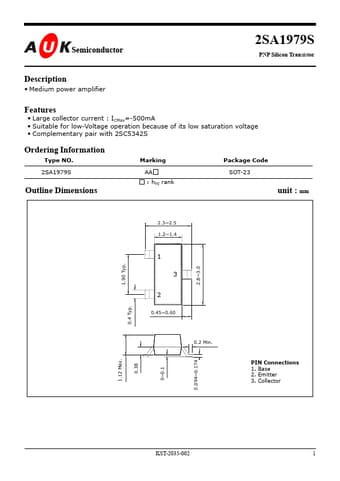

Additional preview pages of the 2SA1979S datasheet.

Medium power amplifier

Large collector current : ICMax=-500mA.
Suitable for low-Voltage operation because of its low saturation voltage.
Complementary pair with 2SC5342S Ordering Information Type NO. 2SA1979S Marking AA : hFE rank Package Code SOT-23 Outline Dimensions unit : mm 2.3~2.5 1.2~1.4 1 1.90 Typ. 3 2 0.4 Typ. 0.45~0.60 0.2 Min. 1.12 Max. 2.8~3.0 KST-2035-002 0.094~0.174 PIN Connections 1. Base 2. Emitter 3. Collector 0.38 0~0.1 1 2SA1979S Absolute maximum ratings C.
