ASC1000N900MED - 900V SiC MOSFET Module

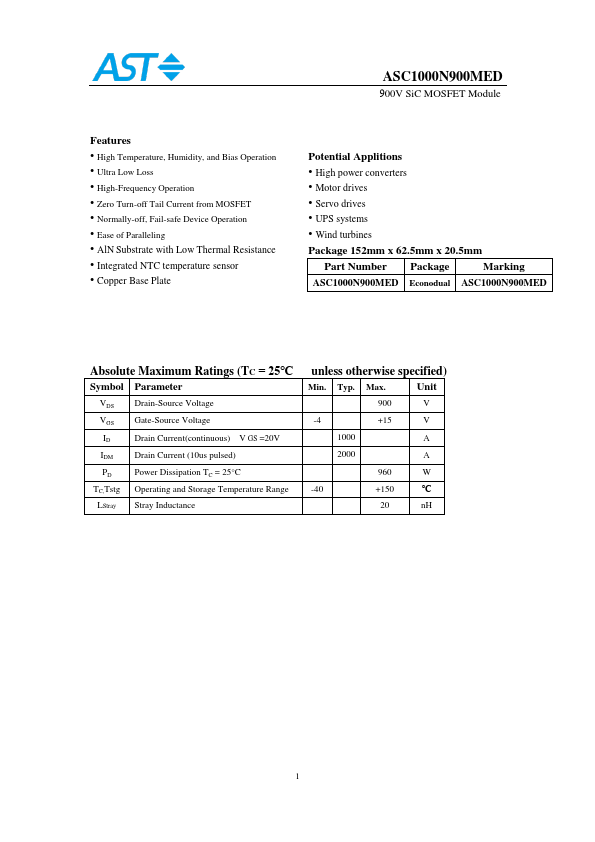

The ASC1000N900MED by AST is a 900V SiC MOSFET Module. Below is the official datasheet preview.

📥 Download Datasheet

ASC1000N900MED 900V SiC MOSFET Module by AST - Datasheet Preview — Official preview page of the ASC1000N900MED 900V SiC MOSFET Module datasheet (AST).

Datasheet Details

Part number	ASC1000N900MED
Manufacturer	AST
File Size	836.74 KB
Description	900V SiC MOSFET Module
Datasheet	ASC1000N900MED-AST.pdf

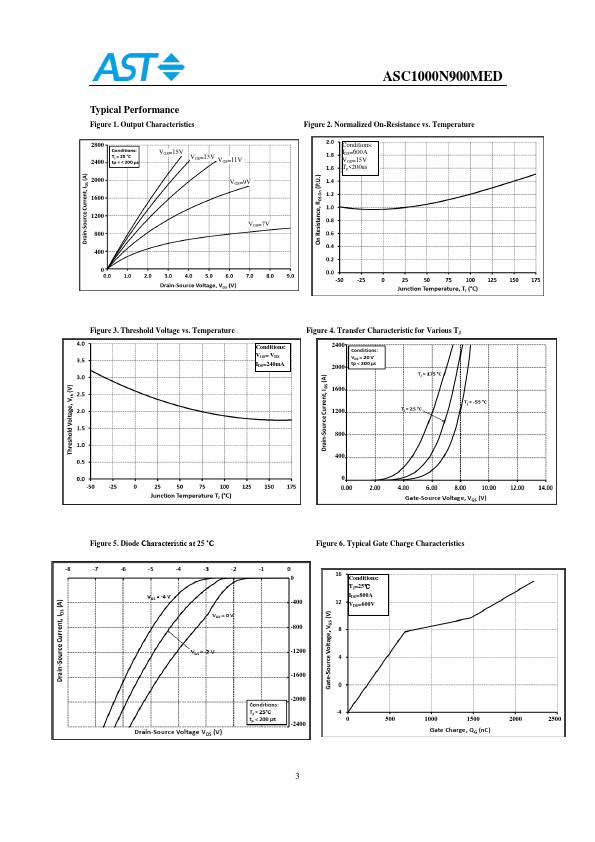

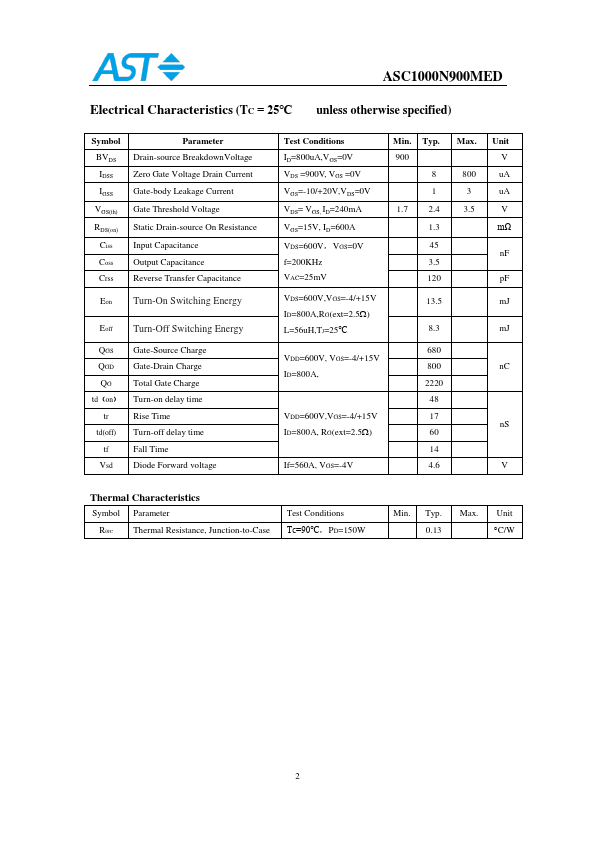

Additional preview pages of the ASC1000N900MED datasheet.

ASC1000N900MED Product details

Description

4 Package Drawing: ASC1000N900MED 5 ASC1000N900MED 6

Features

High Temperature, Humidity, and Bias Operation.
Ultra Low Loss.
High-Frequency Operation.
Zero Turn-off Tail Current from MOSFET.
Normally-off, Fail-safe Device Operation.
Ease of Paralleling.
AlN Substrate with Low Thermal Resistance.
Integrated NTC temperature sensor.
Copper Base Plate Potential Applitions.
High power converters.
Motor drives.
Servo drives.
UPS systems.
