ASC30N1200MT4 1200V N-Channel MOSFET

ASC30N1200MT4 Description

ASC30N1200MT4 1200V N-Channel MOSFET .
Silicon Carbide (SiC) MOSFET use a completely new technology that provide superior switching performance and higher reliability compared to Silicon.

ASC30N1200MT4 Features

* High Speed Switching with Low Capacitances
* High Blocking Voltage with Low RDS(on)
* Optimized package with separate driver source pin
* Easy to parallel and simple to drive

📥 Download Datasheet

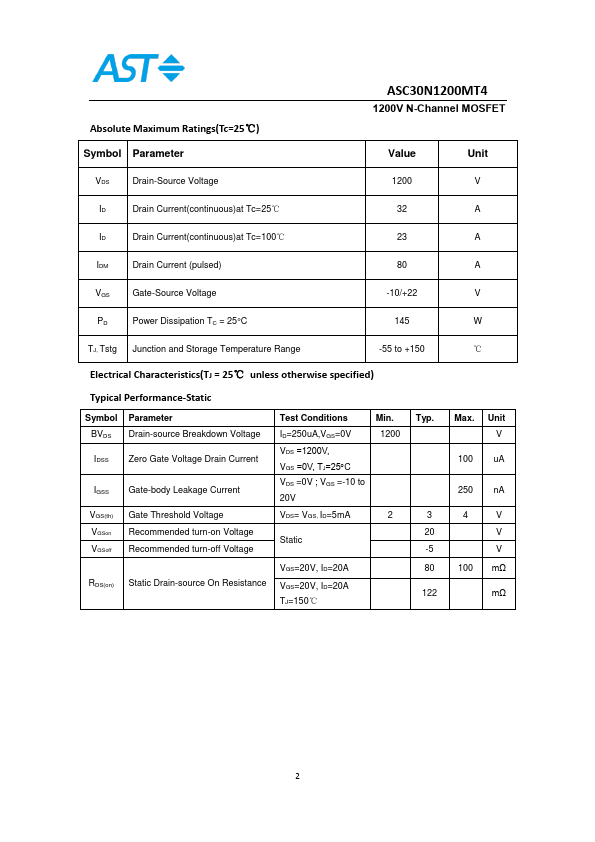

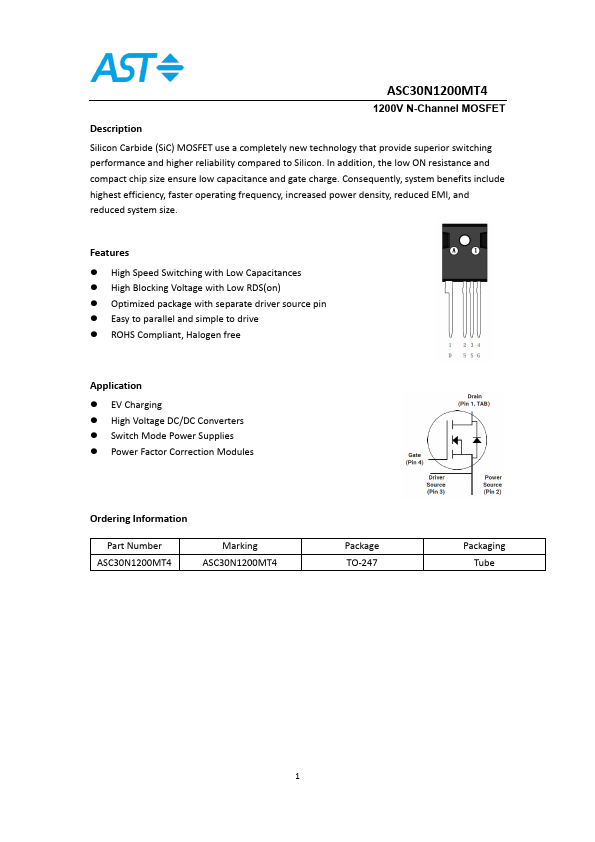

Preview of ASC30N1200MT4 PDF

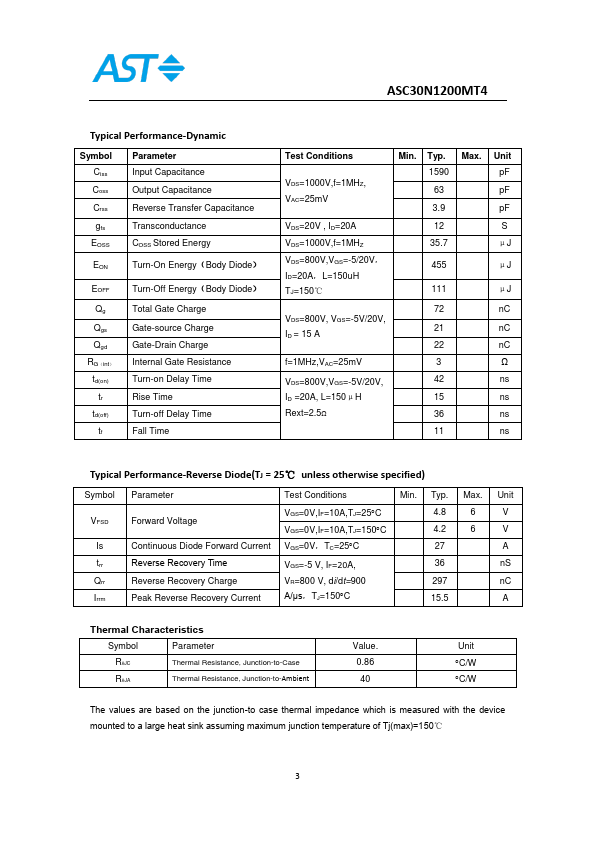

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ASC30N1200MT4
Manufacturer
AST
File Size
883.88 KB
Datasheet
ASC30N1200MT4-AST.pdf
Description
1200V N-Channel MOSFET
