AT32M416 - 32-bit MCU

Product Overview

Datasheet Details

Part number	AT32M416
Manufacturer	ARTERY
File Size	2.61 MB
Description	32-bit MCU
Datasheet	AT32M416 Datasheet
Note	This datasheet PDF includes multiple part numbers: AT32M416, AT32M412. Please refer to the document for exact specifications by model.

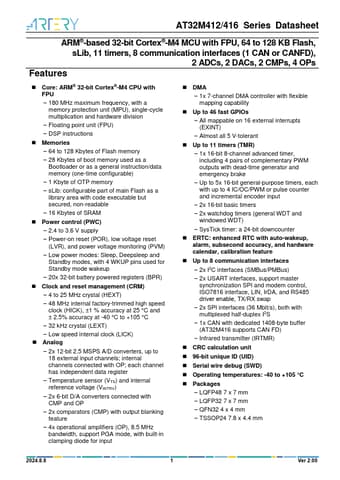

Additional preview pages of the AT32M416 datasheet.

Product details

Description

9 2 Functionality overview 12 2.1 ARM®Cortex®-M4 with FPU 12 2.2 Memory 12 2.2.1 Flash12 2.2.2 Memory protection unit (MPU) 12 2.2.3 SRAM 12 2.3 Interrupts 13 2.3.1 Nested vectored interrupt controller (NVIC)13 2.3.2 External interrupts (EXINT) 13 2.4 Power control (PWC) 13 2.4.1 Power supply schemes

Features

Core: ARM® 32-bit Cortex®-M4 CPU with FPU.
180 MHz maximum frequency, with a memory protection unit (MPU), single-cycle multiplication and hardware division.
Floating point unit (FPU).
DSP instructions.
Memories.
64 to 128 Kbytes of Flash memory.
28 Kbytes of boot memory used as a Bootloader or as a general instruction/data memory (one-time configurable).
1 Kbyte of OTP memory.
sLib: configurable part of main Flash as a l.
