AT3216 Multilayer Chip Antenna

AT3216 Description

www.DataSheet4U.com AT3216 Series Multilayer Chip Antenna .

AT3216 Applications

* ™Bluetooth/Wireless LAN/Home RF ™ISM band 2.4GHz applications Specifications Frequency Part Number Range (MHz) Peak Gain （XZ-V） Average Gain （XZ-V） VSWR Impedance AT3216 -B2R7HAA_ 2400 ~ 2500 0.5 dBi typ. : 3,000pcs : -40 ~ +85 oC : -40 ~ +85 oC : 3W max. -0.5 dBi typ. 2 max. 50 Ω Q’ty/Ree

📥 Download Datasheet

Preview of AT3216 PDF

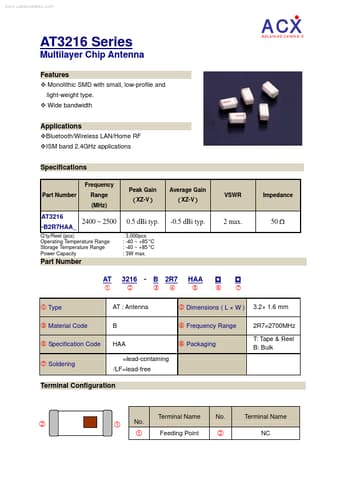

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT3216
Manufacturer
ACX
File Size
380.03 KB
Datasheet
AT3216_ACX.pdf
Description
Multilayer Chip Antenna
