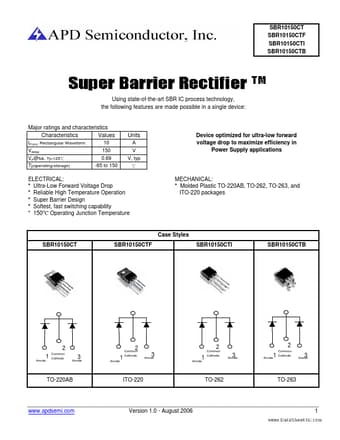

SBR10150CTF, SBR10150CT (SBR10150xxx) Super barrier rectifier

SBR10150CTF Description

SBR10150CT SBR10150CTF SBR10150CTI SBR10150CTB Using state-of-the-art SBR IC process technology, the following .

SBR10150CTF Features

* are made possible in a single device: Major ratings and characteristics Values Characteristics IF(AV) Rectangular Waveform VRRM VF@5A, Tj=125℃ Tj(operating/storage) 10 150 0.69 -65 to 150 Units A V V, typ ℃ Device optimized for ultra-low forward voltage drop to maximize efficiency in Power Supply

SBR10150CTF Applications

* ELECTRICAL:
* Ultra-Low Forward Voltage Drop
* Reliable High Temperature Operation
* Super Barrier Design
* Softest, fast switching capability
* 150OC Operating Junction Temperature MECHANICAL:
* Molded Plastic TO-220AB, TO-262, TO-263, and ITO-220 packages Case Styles SBR

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBR10150CTF, SBR10150CT. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBR10150CTF, SBR10150CT
Manufacturer
APD
File Size
91.29 KB
Datasheet
SBR10150CT_APD.pdf
Description
(SBR10150xxx) Super barrier rectifier
Note
This datasheet PDF includes multiple part numbers: SBR10150CTF, SBR10150CT.
Please refer to the document for exact specifications by model.
