SBR0120S5, SBR0120S3 (SBR0120S3 / SBR0120S5) Super barrier rectifier

SBR0120S5 Description

SBR0120S3 SBR0120S5 Using state-of-the-art SBR IC process technology, the following .

SBR0120S5 Features

* are made possible in a single device: Major ratings and characteristics Characteristics Values IF(AV) Rectangular Waveform VRRM VF@0.1A, TJ=75oC TJ (operating/storage) 0.10 20 0.35 -65 to 125 Units A V V, typ o C ELECTRICAL:
* Low Forward Voltage Drop
* Low Reverse Leakage
* Reliable

SBR0120S5 Applications

* Pulse width < 300 uS, Duty cycle < 2% C ___________________________________________________________________________________________________ www. apdsemi. com Version 2.0 - April 2006 2 SBR0120S3 SBR0120S5 1000 Tj=125C If, Instantaneous Forward Current (Amps) 1 Ir, Reverse Current (uA) 10

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBR0120S5, SBR0120S3. Please refer to the document for exact specifications by model.

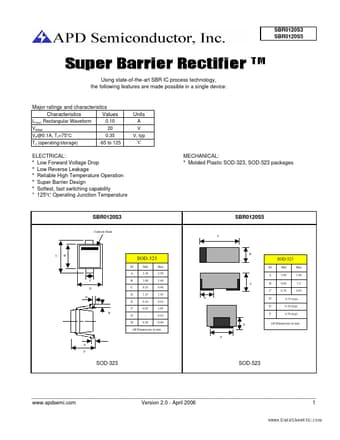

datasheet Preview Page 2 datasheet Preview Page 3
