APL6003 High-Current Overvoltage Protector

APL6003 Description

APL6003 High-Current Overvoltage Protectors with Adjustable OVLO .
The APL6003 overvoltage protection devices feature a low 15mΩ (max) R ON internal FET and protect low-voltage systems against voltage fault.

APL6003 Features

* Wide supply voltage range from 2.8V to 25V
* IOUT maximum 6A continuous current under TA= 25oC
* Low ON resistance: 15mΩ(Max) at a supply voltage of 5V
* Flexible overvoltage-protection trip level - Wide adjustable OVLO threshold range from 4V to 24V - Preset intern

APL6003 Applications

* Smart Phones and PDAs
* Tablet PCs
* Mobile Internet Devices TSET (A1) OUT (A2) OUT (A3) OUT (A4) EN OUT OUT GND (B1) (B2) (B3) (B4) ACOK (C1) OUT (C2) VIN (C3) GND (C4) OVLO VIN (D1) (D2) VIN (D3) GND (D4) ISET VIN VIN VIN (E1) (E2) (E3) (E4)

📥 Download Datasheet

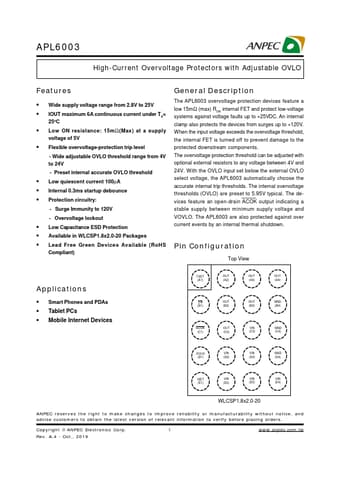

Preview of APL6003 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL6003
Manufacturer
ANPEC
File Size
912.00 KB
Datasheet
APL6003-ANPEC.pdf
Description
High-Current Overvoltage Protector
