APL6002 3-Channel Analog-Digital Converter

APL6002 Description

APL6002 Low-Power, 8-bit, 3-Channel Analog to Digital Converters .
The APL6002 is a precision analog-to-digital converters (ADCs) with 8 bits of resolution, which designed with precision, low power and ease of impleme.

APL6002 Features

* Supply Input Voltages Range: 2.8V to 5.5V
* 100uA Low Supply Current
* 3-Ch Analog Voltage Input: AIN1, AIN2, AIN3
* High Accuracy Nonlinearity: +1.5LSB
* High Accuracy A/D Resolution: 10mV
* High Accuracy A/D Full Scale Range: 1~3.56V
* Buil

APL6002 Applications

* Phone & NB Application
* Temperature Measurement
* Portable Instrumentation
* Consumer Goods Alert/ADDR VDD VDD Alert/ADDR VDD VDD GND GND VIN AIN1 VIN AIN1 APL6002 APL6002 AIN2 AIN3 SCL SDA AIN2 AIN3 SCL SDA ANPEC reserves the right to make chang

📥 Download Datasheet

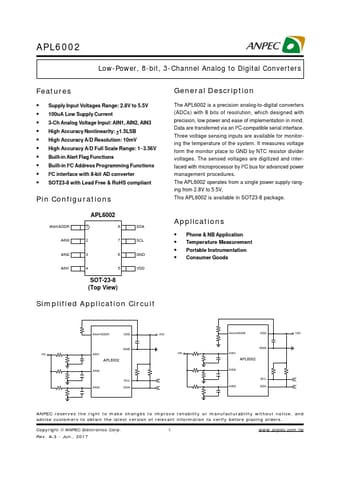

Preview of APL6002 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APL6002
Manufacturer
ANPEC
File Size
284.03 KB
Datasheet
APL6002-ANPEC.pdf
Description
3-Channel Analog-Digital Converter
