AWL9924 - 2.4/5 GHz 802.11a/b/g WLAN Power Amplifier

ANADIGICS

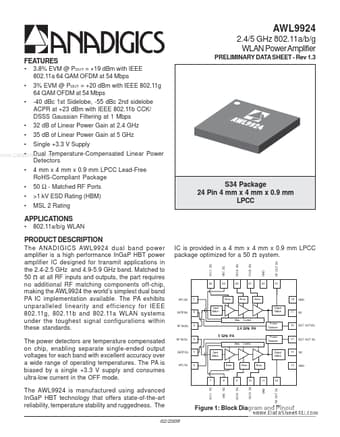

The AWL9924 by ANADIGICS is a 2.4/5 GHz 802.11a/b/g WLAN Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

AWL9924 2.4/5 GHz 802.11a/b/g WLAN Power Amplifier by ANADIGICS - Datasheet Preview — Official preview page of the **AWL9924** 2.4/5 GHz 802.11a/b/g WLAN Power Amplifier datasheet (ANADIGICS).

Datasheet Details

Part number	AWL9924
Manufacturer	ANADIGICS
File Size	345.68 KB
Description	2.4/5 GHz 802.11a/b/g WLAN Power Amplifier
Datasheet	AWL9924_ANADIGICS.pdf
Additional preview pages of the AWL9924 datasheet.

AWL9924 Product details

Description

The ANADIGICS AWL9924 dual band power amplifier is a high performance InGaP HBT power amplifier IC designed for transmit applications in the 2.4-2.5 GHz and 4.9-5.9 GHz band.

Features

3.8% EVM @ POUT = +19 dBm with IEEE 802.11a 64 QAM OFDM at 54 Mbps 3% EVM @ POUT = +20 dBm with IEEE 802.11g 64 QAM OFDM at 54 Mbps -40 dBc 1st Sidelobe, -55 dBc 2nd sidelobe ACPR at +23 dBm with IEEE 802.11b CCK/ DSSS Gaussian Filtering at 1 Mbps 32 dB of Linear Power Gain at 2.4 GHz 35 dB of Linear Power Gain at 5 GHz Single +3.3 V Supply.
