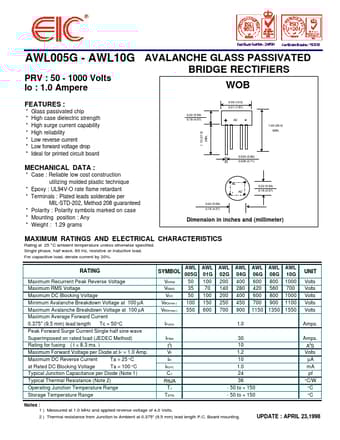

AWL005G - AWL10G AVALANCHE GLASS PASSIVATED
PRV : 50 - 1000 Volts Io : 1.0 Ampere
FEATURES :
* * * * * * * Glass passivated chip High case dielectric strength High surge current capability High reliability Low reverse current Low forward voltage drop Ideal for printed circuit board
0.22 (5.59) 0.18 (4.57)
BRIDGE RECTIFIERS WOB
0.39 (10.0) 0.31 (7.87)
+
AC
1.00 (25.4) MIN.
1.10 (27.9) MIN.
0.034 (0.86) 0.028 (0.71)
MECHANICAL DATA :
* Case : Reliable low cost construction utilizing molded plastic technique * Epoxy : UL94V-O rate flame retardant * Terminals : Plated leads solderable per MIL-STD-202, Method 208 guaranteed * Polarity : Polarity symbols marked on case * Mounting position : Any * Weight : 1.29 grams
AC + AC 0.22 (5.59) 0.18 (4.57)
0.22 (5.59) 0.18 (4.
