AWL01G - AVALANCHE GLASS PASSIVATED BRIDGE RECTIFIERS

AWL01G Description

AWL005G - AWL10G AVALANCHE GLASS PASSIVATED PRV : 50 - 1000 Volts Io : 1.0 Ampere .

AWL01G Features

* :
* Glass passivated chip High case dielectric strength High surge current capability High reliability Low reverse current Low forward voltage drop Ideal for printed circuit board 0.22 (5.59) 0.18 (4.57) BRIDGE RECTIFIERS WOB 0.39 (10.0) 0.31 (7.87) + AC 1

📥 Download Datasheet

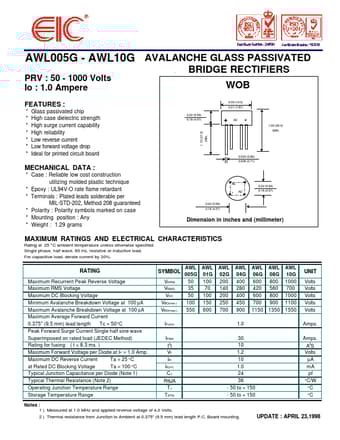

Preview of AWL01G PDF
datasheet Preview Page 2

Datasheet Details

Part number
AWL01G
Manufacturer
EIC discrete Semiconductors
File Size
17.72 KB
Datasheet
AWL01G_EICdiscreteSemiconductors.pdf
Description
AVALANCHE GLASS PASSIVATED BRIDGE RECTIFIERS
