FS6128-07 - PLL Clock Generator

AMI

📥 Download Datasheet

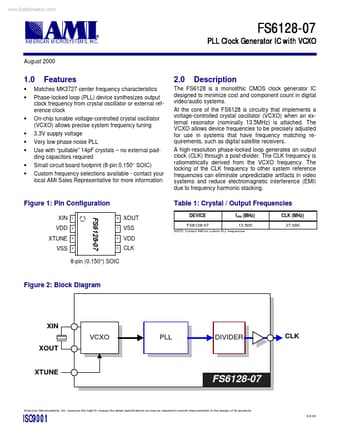

FS6128-07 Datasheet Preview — Preview of FS6128-07 PDF

Datasheet Details

Part number	FS6128-07
Manufacturer	AMI
File Size	92.95 KB
Description	PLL Clock Generator
Datasheet	FS6128-07_AMI.pdf

FS6128-07 Product details

Description

Matches MK3727 center frequency characteristics Phase-locked loop (PLL) device synthesizes output clock frequency from crystal oscillator or external reference clock On-chip tunable voltage-controlled crystal oscillator (VCXO) allows precise system frequency tuning 3.3V supply voltage Very low phase noise PLL Use with “pullable” 14pF crystals no external padding capacitors required Small circuit board footprint (8-pin 0.150″ SOIC) Custom frequency selections available - contact your l

Features

es 2.0.
