FS6128-01 - PLL Clock Generator IC

Description

Phase-locked loop (PLL) device synthesizes output clock frequency from crystal oscillator or external reference clock On-chip tunable voltage-controlled crystal oscillator (VCXO) allows precise system frequency tuning Typically used for generation of MPEG-2 decoder clock 3.3V supply voltage Small c

Features

  • es 2.0.

📥 Download Datasheet

Datasheet Details

Part number FS6128-01
Manufacturer AMI
File Size 90.70 KB
Description PLL Clock Generator IC
Datasheet download datasheet FS6128-01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FS612509-01 1:9 ZERO DELAY CLOCK BUFFER IC ETC
FS612509-02 1:9 ZERO DELAY CLOCK BUFFER IC ETC
FS6131 Programmable Line Lock Clock Generator ON Semiconductor
FS600R07A2E3 IGBT Module Infineon
FS602PG PWM Controller American First Semiconductor

Other Datasheets by AMI

Part Number Description
FS6128-04 PLL Clock Generator
FS6128-05 PLL Clock Generator
FS6128-06 PLL Clock Generator
FS6128-07 PLL Clock Generator
FS6131-01 Programmable Line Lock Clock Generator

Full PDF Text Transcription

Click to expand full text

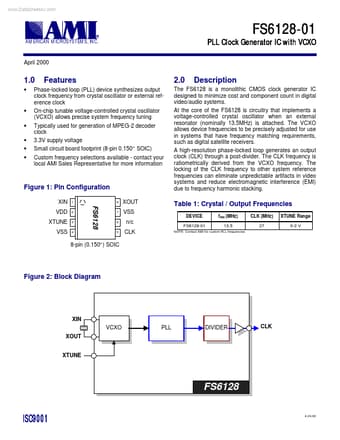

www.DataSheet4U.com FS6128-01 AMERICAN MICROSYSTEMS, INC. PLL Clock Generator IC with VCXO April 2000 1.0 • Features 2.0 Description Phase-locked loop (PLL) device synthesizes output clock frequency from crystal oscillator or external reference clock On-chip tunable voltage-controlled crystal oscillator (VCXO) allows precise system frequency tuning Typically used for generation of MPEG-2 decoder clock 3.3V supply voltage Small circuit board footprint (8-pin 0.150″ SOIC) Custom frequency selections available - contact your local AMI Sales Representative for more information • • • • • Figure 1: Pin Configuration XIN VDD XTUNE VSS 1 8 The FS6128 is a monolithic CMOS clock generator IC designed to minimize cost and component count in digital video/audio systems.
