FS6128-04 - PLL Clock Generator

AMI

📥 Download Datasheet

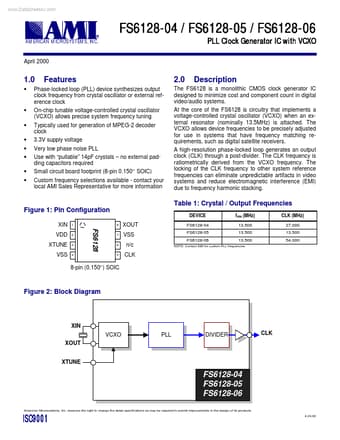

FS6128-04 Datasheet Preview — Preview of FS6128-04 PDF

Datasheet Details

Part number	FS6128-04
Manufacturer	AMI
File Size	91.92 KB
Description	PLL Clock Generator
Datasheet	FS6128-04_AMI.pdf

FS6128-04 Product details

Description

Phase-locked loop (PLL) device synthesizes output clock frequency from crystal oscillator or external reference clock On-chip tunable voltage-controlled crystal oscillator (VCXO) allows precise system frequency tuning Typically used for generation of MPEG-2 decoder clock 3.3V supply voltage Very low phase noise PLL Use with “pullable” 14pF crystals no external padding capacitors required Small circuit board footprint (8-pin 0.150″ SOIC) Custom frequency selections available - contact

Features

es 2.0.
