FS6053, FS6050 - LOW-SKEW CLOCK FANOUT BUFFER

AMI

📥 Download Datasheet

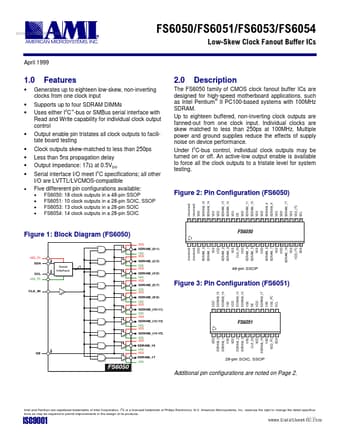

FS6053 Datasheet Preview — This datasheet PDF includes multiple part numbers: FS6053, FS6050. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FS6053, FS6050
Manufacturer	AMI
File Size	339.12 KB
Description	LOW-SKEW CLOCK FANOUT BUFFER
Datasheet	FS6050_AMI.pdf
Note	This datasheet PDF includes multiple part numbers: FS6053, FS6050. Please refer to the document for exact specifications by model.

FS6053 Product details

Description

Generates up to eighteen low-skew, non-inverting clocks from one clock input Supports up to four SDRAM DIMMs 2 Uses either I C™-bus or SMBus serial interface with Read and Write capability for individual clock output control Output enable pin tristates all clock outputs to facilitate board testing Clock outputs skew-matched to less than 250ps Less than 5ns propagation delay Output impedance: 17Ω at 0.5VDD Serial interface I/O meet I C specifications; all other I/O are LVTTL/LVCMOS-compatible Fi

Features

es 2.0.
