VTT12 - Definite Time Delay Relay

Download the VTT12 datasheet PDF (VTT11 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for definite time delay relay.

Description

A stabilised voltage is applied to a resistance/capacitance circuit.

The potential developed across the capacitor is applied to a transistor switching circuit which, in turn, operates an attracted armature relay when the potential reaches the trigger level.

Features

  • Consistent accuracy.
  • Reliability.
  • Low burden.
  • Reduced maintenance.
  • Immunity to transients and surges; withstands 5 kv impulse voltage test.
  • Relays with heavy-duty magnetic blow-out contacts also available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (VTT11-ALSTOM.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number VTT12
Manufacturer ALSTOM
File Size 683.11 KB
Description Definite Time Delay Relay
Datasheet download datasheet VTT12 Datasheet

📁 Similar Datasheet

  • VTT1212 - .040 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1214 - .040 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1222W - .025 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1223W - .025 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1225 - .025 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1226 - .025 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1227 - .025 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1015 - .050 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1016 - .050 NPN Phototransistors (PerkinElmer Optoelectronics)
  • VTT1017 - .050 NPN Phototransistors (PerkinElmer Optoelectronics)
Other Datasheets by ALSTOM
  • VTT11 - Definite Time Delay Relay

Full PDF Text Transcription

Click to expand full text

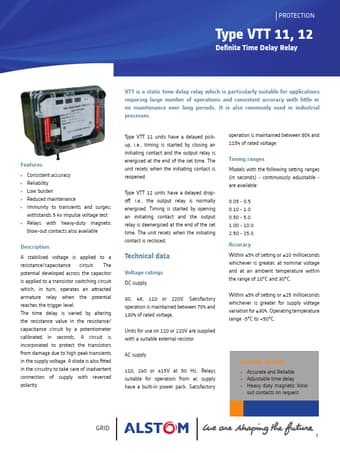

PROTECTION Type VTT 11, 12 Definite Time Delay Relay VTT is a static time delay relay which is particularly suitable for applications requiring large number of operations and consistent accuracy with little or no maintenance over long periods. It is also commonly used in industrial processes. Features • Consistent accuracy • Reliability • Low burden • Reduced maintenance • Immunity to transients and surges; withstands 5 kv impulse voltage test • Relays with heavy-duty magnetic blow-out contacts also available Description A stabilised voltage is applied to a resistance/capacitance circuit. The potential developed across the capacitor is applied to a transistor switching circuit which, in turn, operates an attracted armature relay when the potential reaches the trigger level.
