AOZ8006 - Ultra-Low Capacitance TVS Diode Array

Datasheet Summary

Description

The AOZ8006 is a transient voltage suppressor array designed to protect high speed data lines such as HDMI and Gigabit Ethernet from damaging ESD events.

This device incorporates eight surge rated, low capacitance steering diodes and a TVS in a single package.

Features

  • a flow through layout design. Features.
  • ESD protection for high-speed data lines:.
  • IEC 61000-4-2, level 4 (ESD) immunity test.
  • ±15kV (ai.

📥 Download Datasheet

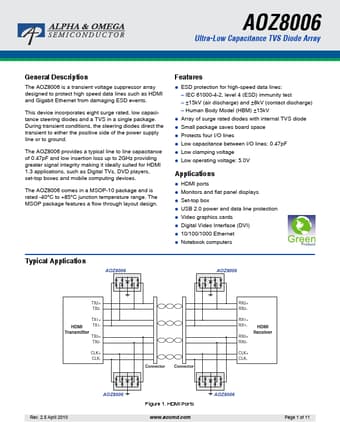

Datasheet preview – AOZ8006

Datasheet Details

Part number AOZ8006
Manufacturer ALPHA & OMEGA
File Size 414.48 KB
Description Ultra-Low Capacitance TVS Diode Array
Datasheet download datasheet AOZ8006 Datasheet
Additional preview pages of the AOZ8006 datasheet.

📁 Similar Datasheet

  • AOZ8000 - Ultra-Low Capacitance TVS Diode Array (Alpha & Omega Semiconductors)
  • AOZ8001 - Ultra-Low Capacitance TVS Diode Array (Alpha & Omega Semiconductors)
  • AOZ8001A - Ultra-Low Capacitance TVS Diode Array (Alpha & Omega Semiconductors)
  • AOZ8005 - Ultra-Low Capacitance TVS Diode Array (Alpha & Omega Semiconductors)
  • AOZ8007 - Ultra-Low Capacitance TVS Diode Array (Alpha & Omega Semiconductors)
  • AOZ8010 - 8-Line EMI Filter (Alpha & Omega Semiconductors)
  • AOZ8011 - 8-Line EMI Filter (Alpha & Omega Semiconductors)
  • AOZ8013 - 4-Line EMI Filter (Alpha & Omega Semiconductors)
  • AOZ8014 - 4-Line EMI Filter (Alpha & Omega Semiconductors)
  • AOZ8015 - 6-Line EMI Filter (Alpha & Omega Semiconductors)
Other Datasheets by ALPHA & OMEGA

Full PDF Text Transcription

Click to expand full text
AOZ8006 Ultra-Low Capacitance TVS Diode Array General Description The AOZ8006 is a transient voltage suppressor array designed to protect high speed data lines such as HDMI and Gigabit Ethernet from damaging ESD events. This device incorporates eight surge rated, low capacitance steering diodes and a TVS in a single package. During transient conditions, the steering diodes direct the transient to either the positive side of the power supply line or to ground. The AOZ8006 provides a typical line to line capacitance of 0.47pF and low insertion loss up to 2GHz providing greater signal integrity making it ideally suited for HDMI 1.3 applications, such as Digital TVs, DVD players, set-top boxes and mobile computing devices.
