AOZ3017 - 4A Synchronous Buck Regulator

Datasheet Summary

Description

The AOZ3017 is a high efficiency, simple to use, 4 A synchronous buck regulator.

The AOZ3017 operates from a 4.5 V to 18 V input voltage range, and provides up to 4 A of continuous output current with an output voltage adjustable down to 0.8 V.

Features

  • 4.5 V to 18 V operating input voltage range.
  • 55 mΩ internal high-side switch and 20 mΩ internal low-side switch (at 12 V).
  • Up to 95 % efficiency.
  • External soft start.
  • Output voltage adjustable to 0.8 V.
  • 4 A continuous output current.
  • 500 kHz PWM operation.
  • Cycle-by-cycle current limit.
  • Pre-bias start-up.
  • Short-circuit protection.
  • Thermal shutdown.
  • Exposed pad SO-8 package.

📥 Download Datasheet

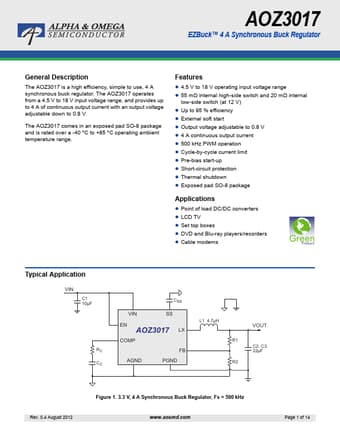

Datasheet preview – AOZ3017
