AOZ3018PI - 5A Synchronous Buck Regulator

Datasheet Summary

Description

The AOZ3018 is a high efficiency, simple to use, 5 A synchronous buck regulator.

The AOZ3018 operates from a 4.5 V to 18 V input voltage range, and provides up to 4 A of continuous output current with an output voltage adjustable down to 0.8 V.

Features

  • 4.5 V to 18 V operating input voltage range.
  • 55 mΩ internal high-side switch and 19 mΩ internal low-side switch (at 12 V).
  • Up to 95 % efficiency.
  • External soft start.
  • Output voltage adjustable to 0.8 V.
  • 5 A continuous output current.
  • 500 kHz PWM operation.
  • Cycle-by-cycle current limit.
  • Pre-bias start-up.
  • Short-circuit protection.
  • Thermal shutdown.
  • Exposed pad SO-8 package.

📥 Download Datasheet

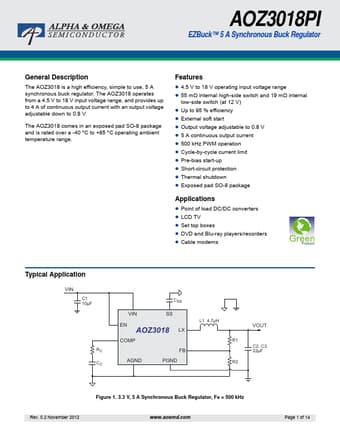

Datasheet preview – AOZ3018PI

Datasheet Details

Part number AOZ3018PI
Manufacturer ALPHA & OMEGA
File Size 518.01 KB
Description 5A Synchronous Buck Regulator
Datasheet download datasheet AOZ3018PI Datasheet
Additional preview pages of the AOZ3018PI datasheet.

📁 Similar Datasheet

  • AOZ3013PI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ3015AI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ3015PI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ3019 - Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ3024PI - 3A Synchronous Buck Regulator (Alpha & Omega Semiconductors)
  • AOZ3101 - 2A Synchronous Regulator (Alpha & Omega Semiconductors)
  • AOZ32033AQI - Coil Driver (Alpha & Omega Semiconductors)
  • AOZ32063MQV - Three-Phase Motor Driver (Alpha & Omega Semiconductors)
  • AOZ32101ADV - 100V 2.5A Half-bridge Gate Driver (Alpha & Omega Semiconductors)
  • AOZ32101MDV - 100V 2.5A Half-bridge Gate Driver (Alpha & Omega Semiconductors)
Other Datasheets by ALPHA & OMEGA

Full PDF Text Transcription

Click to expand full text
AOZ3018PI EZBuck™ 5 A Synchronous Buck Regulator General Description The AOZ3018 is a high efficiency, simple to use, 5 A synchronous buck regulator. The AOZ3018 operates from a 4.5 V to 18 V input voltage range, and provides up to 4 A of continuous output current with an output voltage adjustable down to 0.8 V. The AOZ3018 comes in an exposed pad SO-8 package and is rated over a -40 °C to +85 °C operating ambient temperature range. Features  4.5 V to 18 V operating input voltage range  55 mΩ internal high-side switch and 19 mΩ internal low-side switch (at 12 V)  Up to 95 % efficiency  External soft start  Output voltage adjustable to 0.
