ADS16A80D, ADS16A60D - SCRs

The ADS16A80D by ADV is a SCRs. Below is the official datasheet preview.

ADS16A80D SCRs by ADV - Datasheet Preview — Official preview page of the **ADS16A80D** SCRs datasheet (ADV).

Datasheet Details

Part number	ADS16A80D, ADS16A60D
Manufacturer	ADV
File Size	290.97 KB
Description	SCRs
Datasheet	ADS16A60D-ADV.pdf
Note	This datasheet PDF includes multiple part numbers: ADS16A80D, ADS16A60D. Please refer to the document for exact specifications by model.

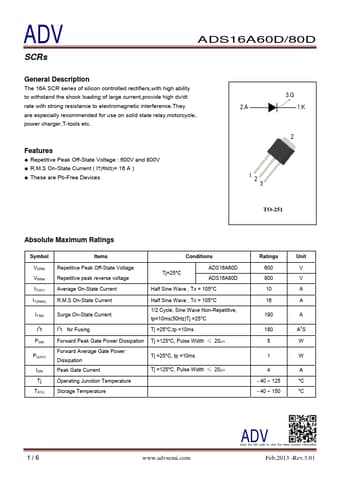

Additional preview pages of the ADS16A80D datasheet.

ADS16A80D Product details

Description

The 16A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc.

Features

Repetitive Peak Off-State Voltage : 600V and 800V.
R. M. S On-State Current ( IT(RMS)= 16 A ).
These are Pb-Free Devices 3.G 2.A 1.K 2 123 TO-251 Absolute Maximum Ratings Symbol VDRM VRRM IT(AV) IT(RMS) ITSM I2t PGM PG(AV) IGM Tj TSTG Items Repetitive Peak Off-State Voltage Repetitive peak reverse voltage Conditions Tj=25°C ADS16A60D ADS16A80D Average On-State Current Half Sine Wave , Tc = 105°C R. M. S On-State Current Surge On-State Current I2t for Fusing Half Sine Wave.
