ADS1626, ADS1625-Burr - ADC

Name: ADS1626
SKU: ADS1626-1443564

Burr-Brown

📥 Download Datasheet

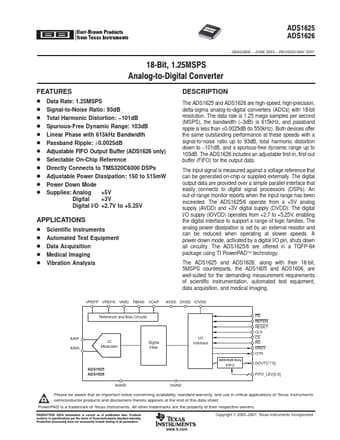

ADS1626 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS1626, ADS1625-Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ADS1626, ADS1625-Burr
Manufacturer	Burr-Brown
File Size	1.18 MB
Description	ADC
Datasheet	ADS1625-Burr-Brown.pdf
Note	This datasheet PDF includes multiple part numbers: ADS1626, ADS1625-Burr. Please refer to the document for exact specifications by model.

ADS1626 Product details

Description

The ADS1625 and ADS1626 are high-speed, high-precision, delta-sigma analog-to-digital converters (ADCs) with 18-bit resolution. 3dB) is 615kHz, and passband ripple is less than ±0.0025dB (to 550kHz). 101dB, and a spurious-free dynamic range up to 103dB.

Features

D Data Rate: 1.25MSPS D Signal-to-Noise Ratio: 93dB D Total Harmonic Distortion:.
101dB D Spurious-Free Dynamic Range: 103dB D Linear Phase with 615kHz Bandwidth D Passband Ripple: ±0.0025dB D Adjustable FIFO Output Buffer (ADS1626 only) D Selectable On-Chip Reference D Directly Connects to TMS320C6000 DSPs D Adjustable Power Dissipation: 150 to 515mW D Power Down Mode D Supplies: Analog +5V Digital +3V Digital I/O +2.7V to +5.25V.
