ADS1602, ADS1602_Burr - 16-Bit + 2.5MSPS Analog-to-Digital Converter

Name: ADS1602
SKU: ADS1602-671703

Burr-Brown

📥 Download Datasheet

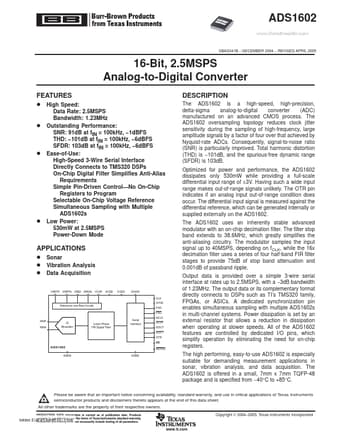

ADS1602 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS1602, ADS1602_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ADS1602, ADS1602_Burr
Manufacturer	Burr-Brown
File Size	435.71 KB
Description	16-Bit + 2.5MSPS Analog-to-Digital Converter
Datasheet	ADS1602_Burr-Brown.pdf
Note	This datasheet PDF includes multiple part numbers: ADS1602, ADS1602_Burr. Please refer to the document for exact specifications by model.

ADS1602 Product details

Description

The ADS1602 is a high-speed, high-precision, delta-sigma analog-to-digital converter (ADC) manufactured on an advanced CMOS process. 101dB, and the spurious-free dynamic range (SFDR) is 103dB.

Features

D High Speed: D Data Rate: 2.5MSPS Bandwidth: 1.23MHz Outstanding Performance: SNR: 91dB at fIN = 100kHz,.
1dBFS THD:.
101dB at fIN = 100kHz,.
6dBFS SFDR: 103dB at fIN = 100kHz,.
6dBFS Ease-of-Use: High-Speed 3-Wire Serial Interface Directly Connects to TMS320 DSPs On-Chip Digital Filter Simplifies Anti-Alias Requirements Simple Pin-Driven Control.
No On-Chip Registers to Program Selectable On-Chip Voltage Reference Simultaneous Sampling with Multiple ADS16.
