AAT3171 High Efficiency Charge Pump

AAT3171 Description

High Current, High Efficiency Charge Pump with Auto-Timer General .
The AAT3171 is a high output current, high efficiency, low noise, low profile charge pump DC/DC converter.

AAT3171 Features

* ChargePump™ Up to 800mA Output Current Tri-Mode 1X/1.5X/2X in Current Mode 16 Current Level Steps Set by S2Cwire External RSET to Set Maximum Current

AAT3171 Applications

* where solution cost, size, and efficiency are critical. The AAT3171 is capable of driving a regulated output current up to 800mA. Output current levels can be easily programmed in 16 steps through AnalogicTech's Simple Serial Control™ (S2Cwire™) interface controlled by a single microcontroller GPIO

📥 Download Datasheet

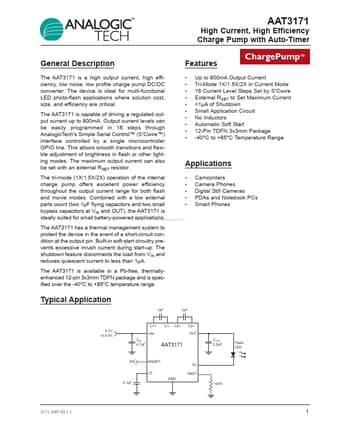

Preview of AAT3171 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT3171
Manufacturer
AAT
File Size
414.20 KB
Datasheet
AAT3171_AAT.pdf
Description
High Efficiency Charge Pump
