AAT3120 - 3-Channel Charge Pump

Description

The AAT3120 is a low noise, constant frequency charge pump DC/DC converter that uses fractional (1.5X) conversion to improve efficiency for white LED applications.

The device can be used to produce eight current levels up to 20mA per channel for up to three channels.

Features

  • ChargePump™.
  • VIN Range: 2.7V to 5.5V Fractional Charge Pump Mode Drives Low-VF and High-VF Type LEDs Up to Three LED Outputs.
  • Single Wire Programming.
  • Eight Regulated Current Settings.
  • Max 20mA per Channel Low Noise Constant Frequency Operation No Inductors 1MHz Switching Frequency Small.

📥 Download Datasheet

Datasheet Details

Part number AAT3120
Manufacturer AAT
File Size 283.77 KB
Description 3-Channel Charge Pump
Datasheet download datasheet AAT3120 Datasheet

📁 Similar Datasheet

  • AAT3120 - Three-Channel Charge Pump (Skyworks)
  • AAT3121 - High Efficiency 1.5X Fractional Charge Pump (Skyworks)
  • AAT3122 - High Efficiency 1X/1.5X Fractional Charge Pump (Skyworks)
  • AAT3123 - High Efficiency 1X/1.5X Fractional Charge Pump (Skyworks Solutions)
  • AAT3123A - High Efficiency 1X/1.5X Fractional Charge Pump (Skyworks Solutions)
  • AAT3124 - High Efficiency 1X/1.5X Fractional Charge Pump (Skyworks Solutions)
  • AAT3128 - RGB LED Fashion Lighting Controller (Skyworks Solutions)
  • AAT3129 - High Efficiency 1X/1.5X/2X Charge Pump (Skyworks)
  • AAT3103 - 3-Channel Charge-Pump LED Driver (Advanced Analog Technology)
  • AAT3103 - Three-Channel Charge-Pump LED Driver (Skyworks)
Other Datasheets by AAT
  • AAT3122 - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3123 - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3123A - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3124 - High Efficiency 1X/1.5X Fractional Charge Pump
  • AAT3129 - High Efficiency 1X/1.5X/2X Charge Pump
  • AAT3112 - High Efficiency Charge Pump
  • AAT3114 - High Efficiency 1.5X Fractional Charge Pumps
  • AAT3114A - High Efficiency 1.5X Fractional Charge Pumps

Full PDF Text Transcription

Click to expand full text

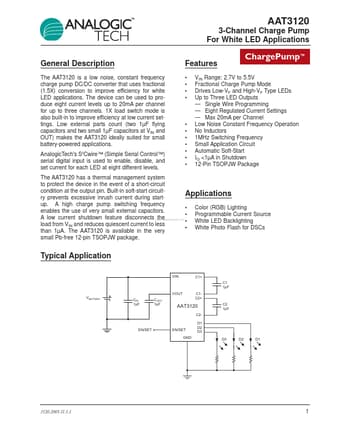

AAT3120 3-Channel Charge Pump For White LED Applications General Description The AAT3120 is a low noise, constant frequency charge pump DC/DC converter that uses fractional (1.5X) conversion to improve efficiency for white LED applications. The device can be used to produce eight current levels up to 20mA per channel for up to three channels. 1X load switch mode is also built-in to improve efficiency at low current settings. Low external parts count (two 1µF flying capacitors and two small 1µF capacitors at VIN and OUT) makes the AAT3120 ideally suited for small battery-powered applications. AnalogicTech's S2Cwire™ (Simple Serial Control™) serial digital input is used to enable, disable, and set current for each LED at eight different levels.
