TPV821 Low Voltage Supervisory Circuit

TPV821 Description

TPV821 Low Voltage Supervisory Circuit with Manual Reset .
The TPV821 is a supervisory circuit that monitors power supply voltage levels and provides a power-on reset signal.

TPV821 Features

* Precision low voltage monitoring
* 200 ms (typical) reset timeout
* Manual reset input
* Reset output stage
* Open Drain Active-low output (TPV821)
* Low power consumption: 2.2 μA
* Guaranteed reset output valid to VCC = 1 V
* Power supply glitch immunity
* Spec

TPV821 Applications

* Microprocessor systems
* Computers
* Controllers
* Intelligent instruments

📥 Download Datasheet

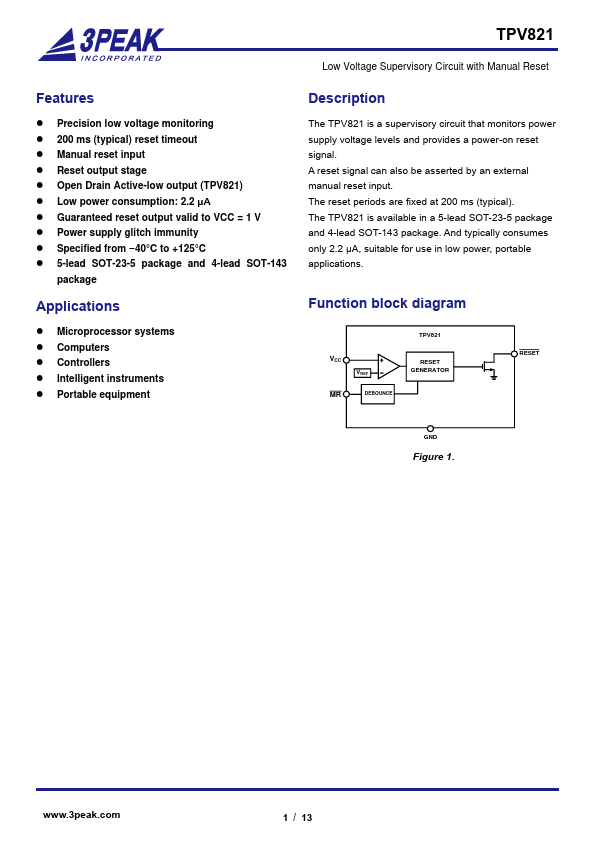

Preview of TPV821 PDF

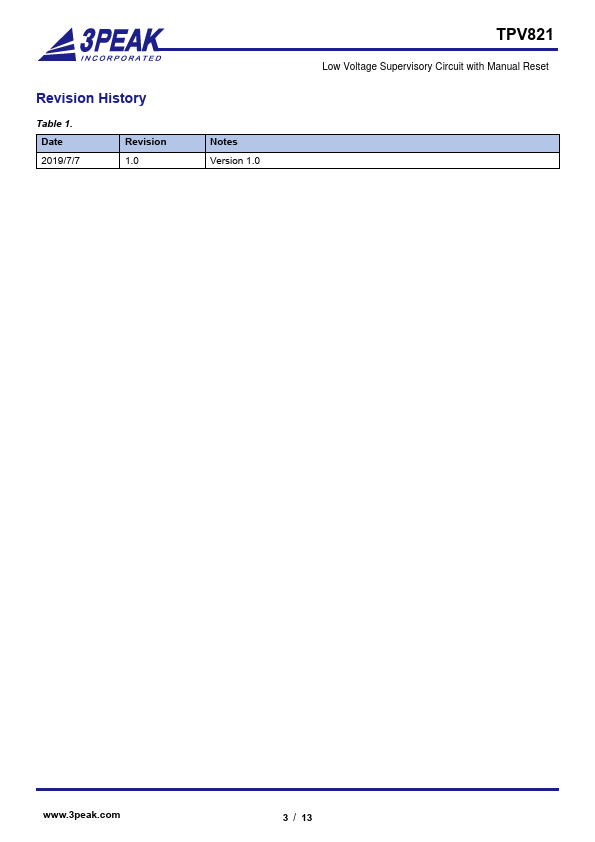

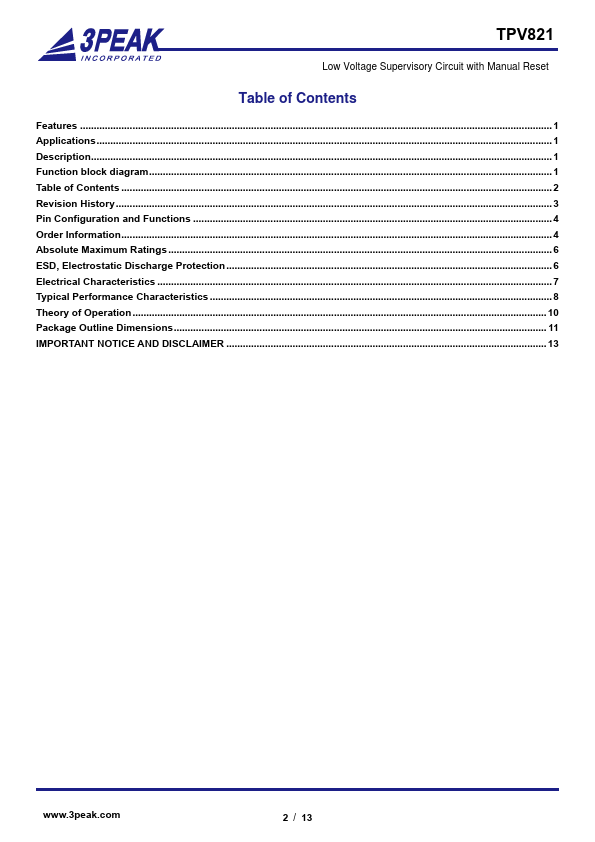

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPV821
Manufacturer
3PEAK
File Size
616.66 KB
Datasheet
TPV821-3PEAK.pdf
Description
Low Voltage Supervisory Circuit
