TPV8308 Low Quiescent Current Supervisory Circuits

TPV8308 Description

TPV8308 Low Quiescent Current Supervisory Circuits with Programmable Reset Delay .
Wide-Supply Voltage Range: 1. Very Low Quiescent Current: 600 nA typ. Fixed Threshold Voltage from 0.

TPV8308 Applications

* The TPV8308 is a family of supervisory circuits to monitor a voltage rail from 0.405 V to 5 V, asserting an active low/active high open-drain or push-pull RESET /RESET output when the voltage of the sense pin drops below a fixed threshold or when the manual reset pin MR is logic low. The RESET /RES

📥 Download Datasheet

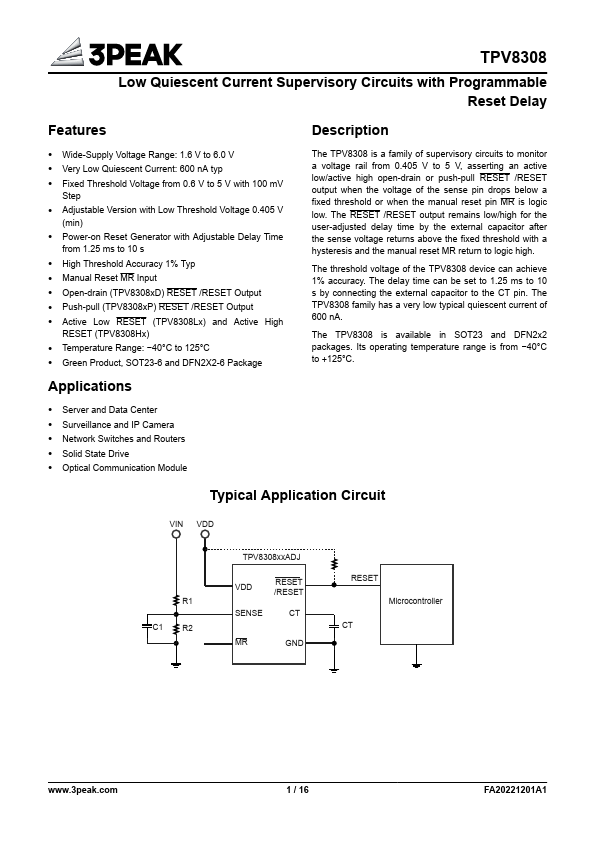

Preview of TPV8308 PDF

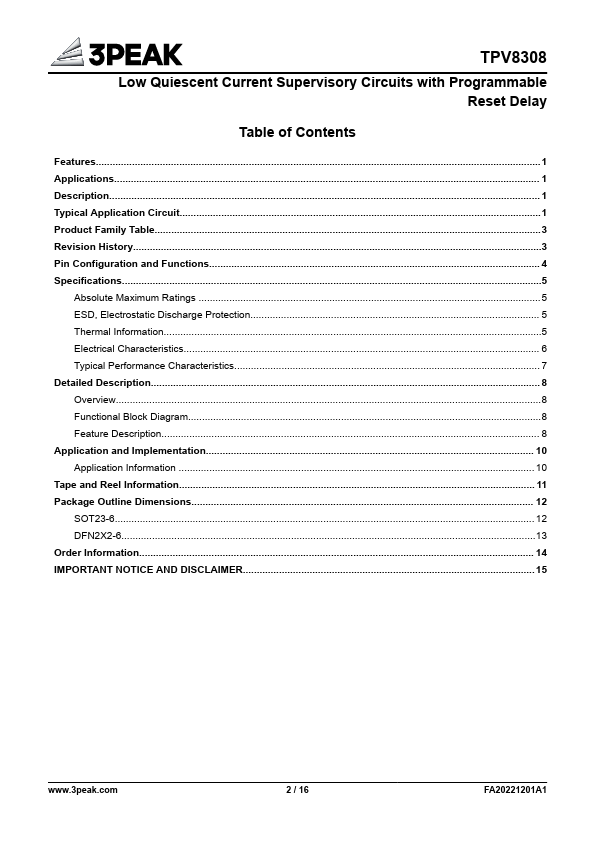

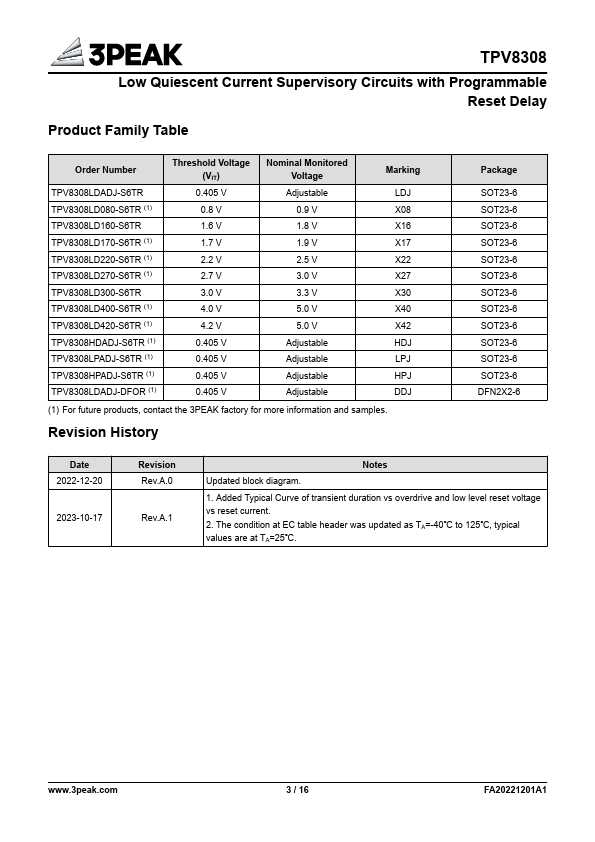

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPV8308
Manufacturer
3PEAK
File Size
1.08 MB
Datasheet
TPV8308-3PEAK.pdf
Description
Low Quiescent Current Supervisory Circuits
