TPT7720 2-Channel Enhanced High-Performance Digital Isolator

TPT7720 Description

TPT772x 2-Channel Enhanced High-Performance Digital Isolator .
150-Mbps Data Rate. 5-kV RMS Isolation Rating (WSOP). ±200-kV/μs typ Static CMTI, ±150-kV/μs typ Dynamic CMTI. L.

TPT7720 Applications

* The TPT772x devices are high-performance, dual-channel enhanced digital isolators with 5000-VRMS (WSOP8, WSOP16), and 3750-VRMS (SOP8) isolation ratings per UL 1577. These devices have also been certified by VDE, UL, CSA, TUV, CQC, and CB. The TPT772x devices provide high reliability and high perfo

📥 Download Datasheet

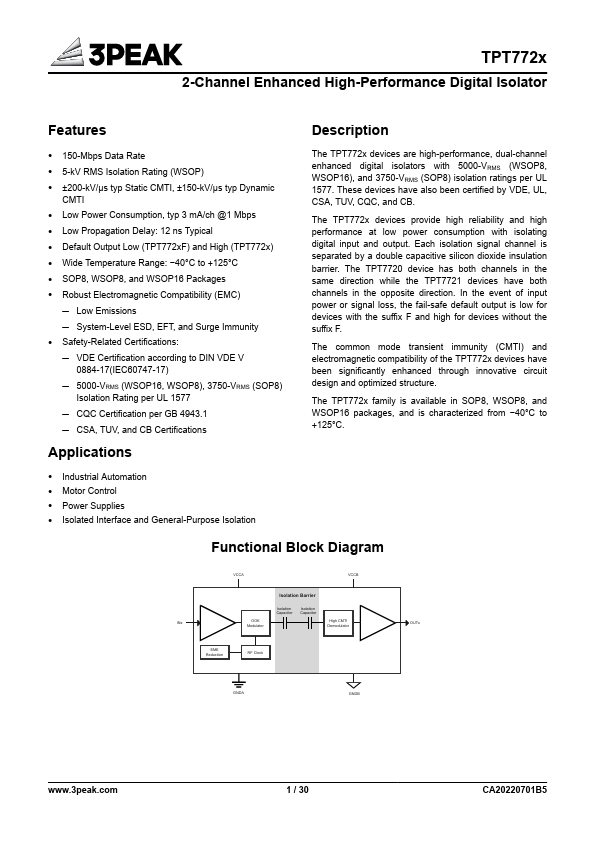

Preview of TPT7720 PDF

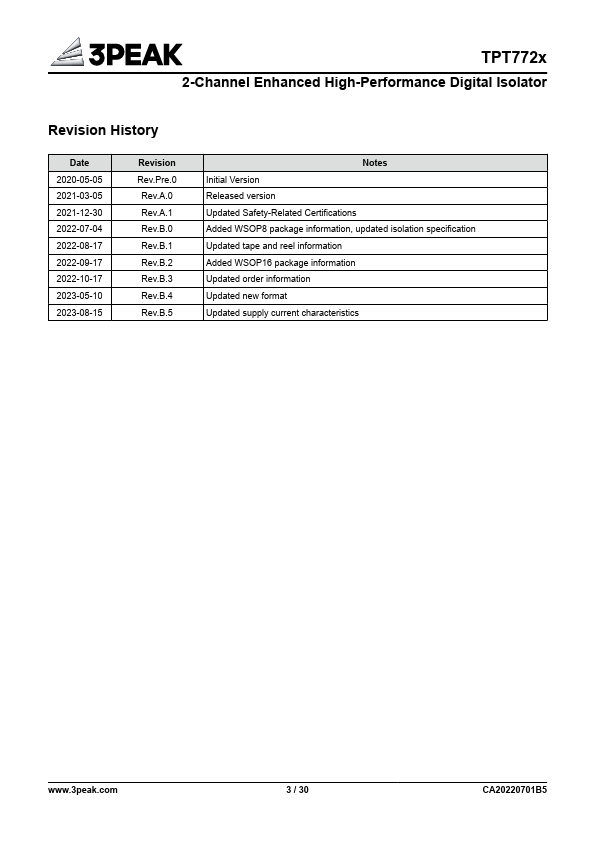

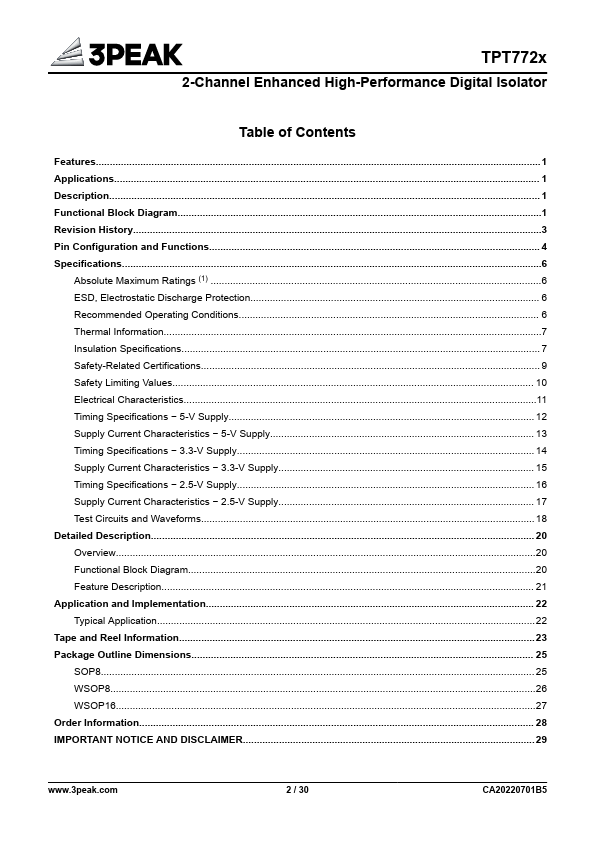

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPT7720
Manufacturer
3PEAK
File Size
1.48 MB
Datasheet
TPT7720-3PEAK.pdf
Description
2-Channel Enhanced High-Performance Digital Isolator
