TPR6040 - High-Precision Shunt Voltage Reference

TPR6040 Description

TPR6040 High-Precision Shunt Voltage Reference .
The TPR6040 is a shunt voltage reference with guaranteed temperature stability over the entire operating temperature range.

TPR6040 Features

* Fixed Output Voltage:
* 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V, and 5 V
* High Initial Accuracy and Low-Temperature Coefficient
* Grade A: Max 0.1%, 25 ppm/°C
* Grade B: Max 0.2%, 50 ppm/°C
* Operation Temperature Range:
* 40°C to 125°C
* Sink Current Ca

TPR6040 Applications

* Power
* Led Lighting
* Current Sensing
* Instrumentation

📥 Download Datasheet

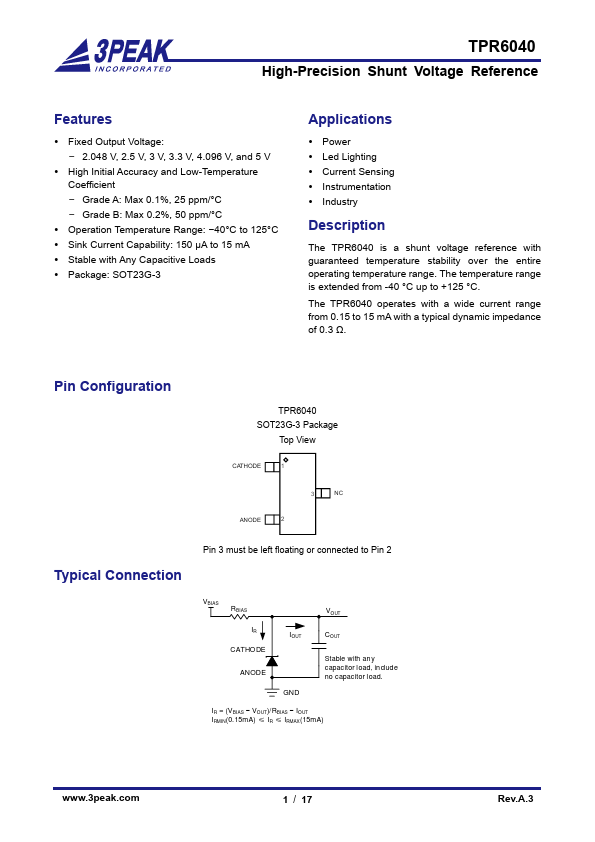

Preview of TPR6040 PDF

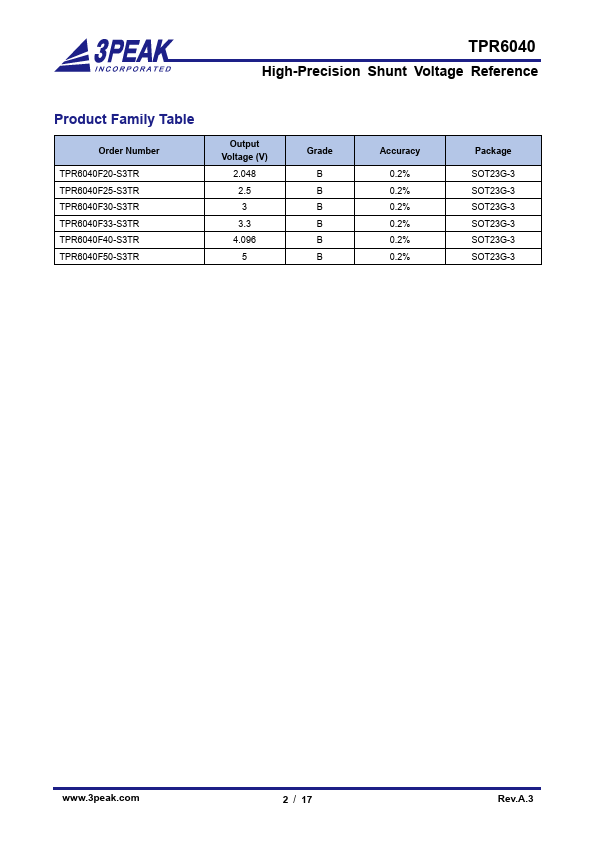

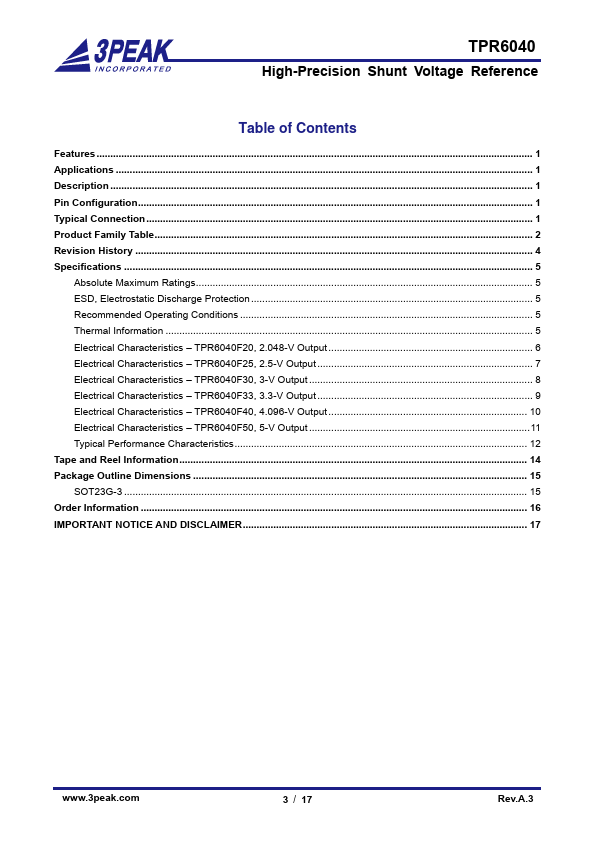

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPR6040
Manufacturer
3PEAK
File Size
1.30 MB
Datasheet
TPR6040-3PEAK.pdf
Description
High-Precision Shunt Voltage Reference
