TPR3312-QF11R-S, TPR33-S Voltage Reference

TPR3312-QF11R-S Description

TPR33-S Voltage Reference .
The TPR33-S is a voltage reference with guaranteed temperature stability over the entire operating temperature range.

TPR3312-QF11R-S Features

* Fixed Output Voltage:
* 1.25 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V
* High Initial Accuracy and Low Temperature Coefficient
* Max 0.15%
* 30 ppm/°C
* Operation Temperature Range:
* 40°C to 125°C
* Output Noise: 50 μVpp of TPR3325
* Quiescent Curre

TPR3312-QF11R-S Applications

* with AEC- Q100 Reliability Test (SOT23G-3 Package)
* Package Options:
* SOT23G-3
* QFN1.5X1.5-8 Applications
* Power
* Instrumentation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPR3312-QF11R-S, TPR33-S. Please refer to the document for exact specifications by model.

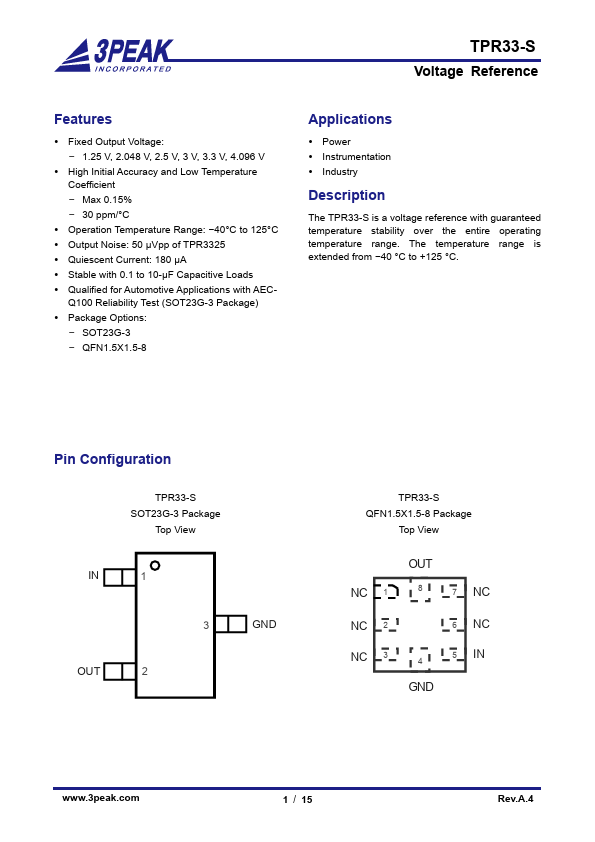

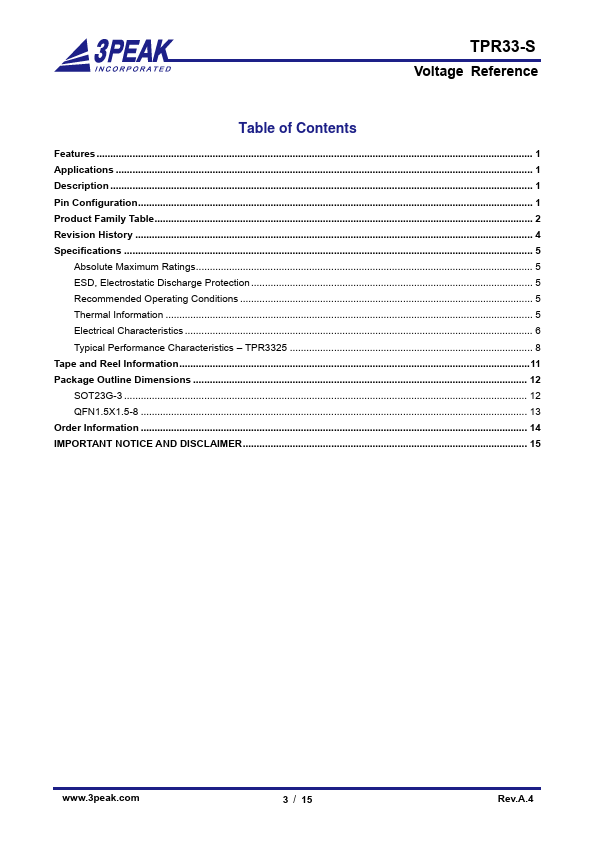

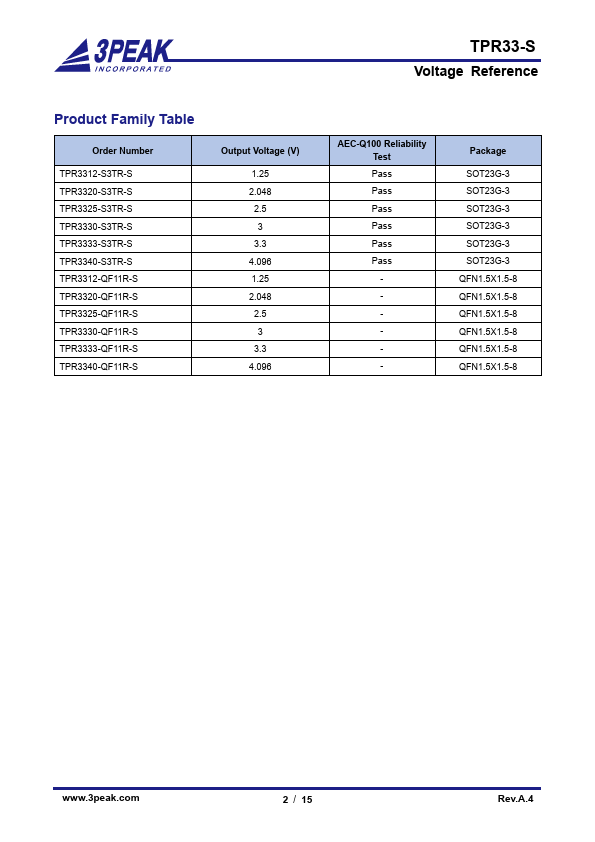

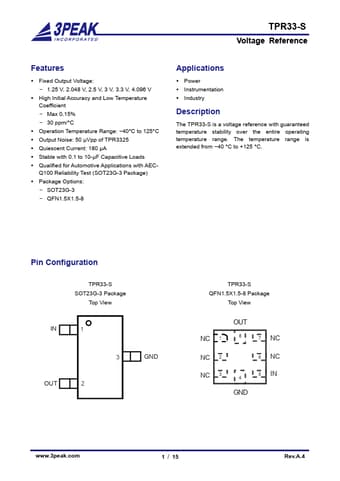

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPR3312-QF11R-S, TPR33-S
Manufacturer
3PEAK
File Size
1.19 MB
Datasheet
TPR33-S-3PEAK.pdf
Description
Voltage Reference
Note
This datasheet PDF includes multiple part numbers: TPR3312-QF11R-S, TPR33-S.
Please refer to the document for exact specifications by model.
