TPR3320-S3TR Voltage Reference

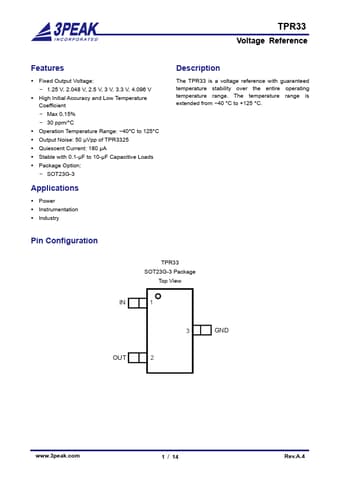

The TPR33 is a voltage reference with guaranteed temperature stability over the entire operating temperature range. The temperature range is extended from *40 °C to +125 °C. Pin Configuration TPR33 SOT23G-3 Package Top View IN 1 OT 2 3 GN www.3peak.com 1 / 14 Rev.A.4 Product Fami.

TPR3320-S3TR Features

* Fixed Output Voltage:

* 1.25 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V

* High Initial Accuracy and Low Temperature Coefficient

* Max 0.15%

* 30 ppm/°C

* Operation Temperature Range:

* 40°C to 125°C

* Output Noise: 50 μVpp of TPR3325

* Quiescent Curre

TPR33-3PEAK.pdf

TPR3320-S3TR Datasheet Preview — This datasheet PDF includes multiple part numbers: TPR3320-S3TR, TPR33. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPR3320-S3TR, TPR33

Manufacturer:

3PEAK

File Size:

1.05 MB

Description:

Voltage reference.

Note:

This datasheet PDF includes multiple part numbers: TPR3320-S3TR, TPR33.
Please refer to the document for exact specifications by model.
