TPR3325-QF11R-S, TPR33-S Datasheet - 3PEAK

TPR3325-QF11R-S Voltage Reference

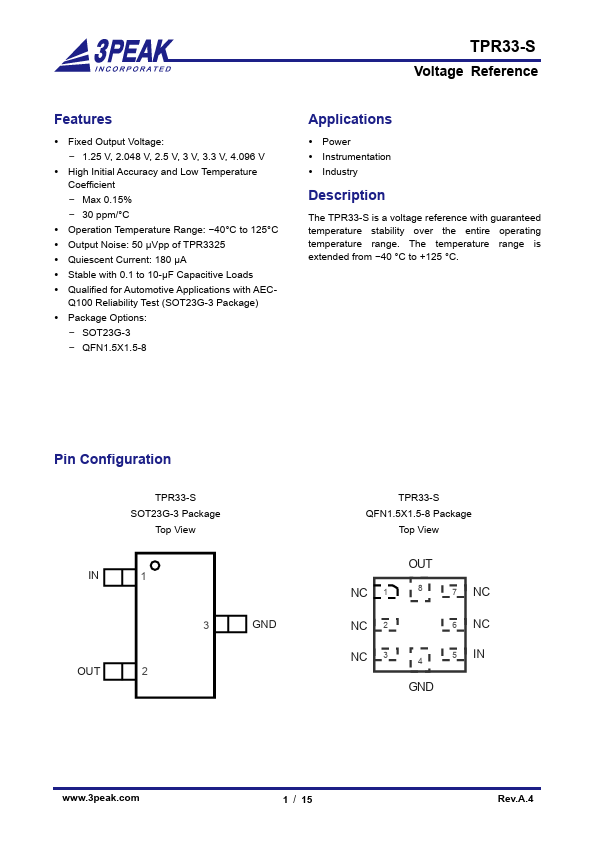

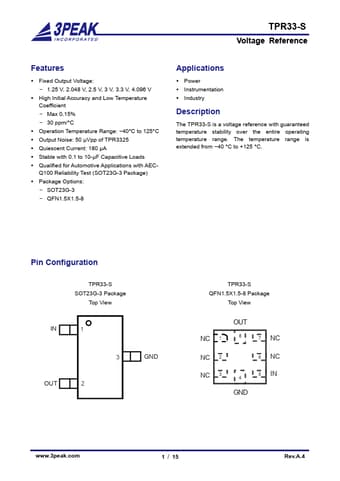

The TPR33-S is a voltage reference with guaranteed temperature stability over the entire operating temperature range. The temperature range is extended from *40 °C to +125 °C. Pin Configuration TPR33-S SOT23G-3 Package Top View IN 1 3 GN OT 2 TPR33-S QFN1.5X1.5-8 Package Top View OT.

TPR3325-QF11R-S Features

* Fixed Output Voltage:

* 1.25 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V

* High Initial Accuracy and Low Temperature Coefficient

* Max 0.15%

* 30 ppm/°C

* Operation Temperature Range:

* 40°C to 125°C

* Output Noise: 50 μVpp of TPR3325

* Quiescent Curre

TPR33-S-3PEAK.pdf

This datasheet PDF includes multiple part numbers: TPR3325-QF11R-S, TPR33-S. Please refer to the document for exact specifications by model.

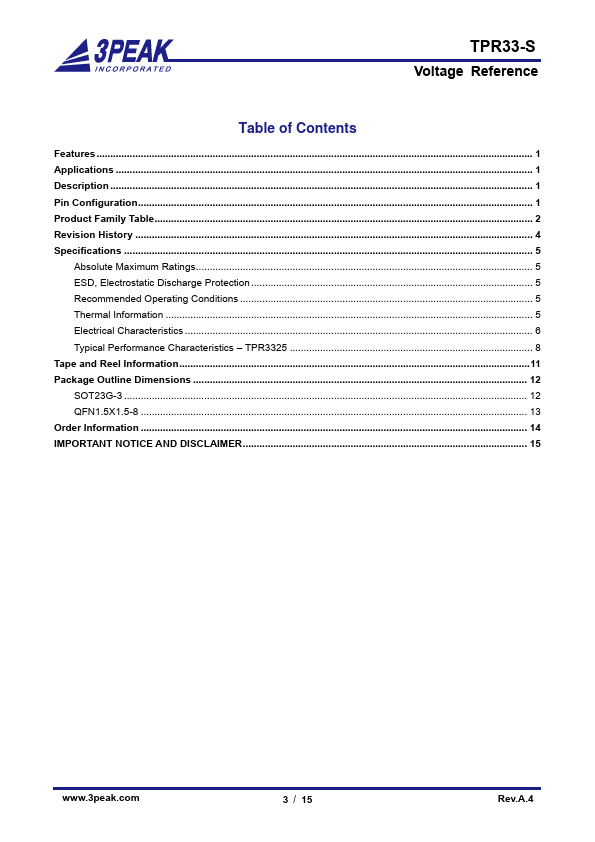

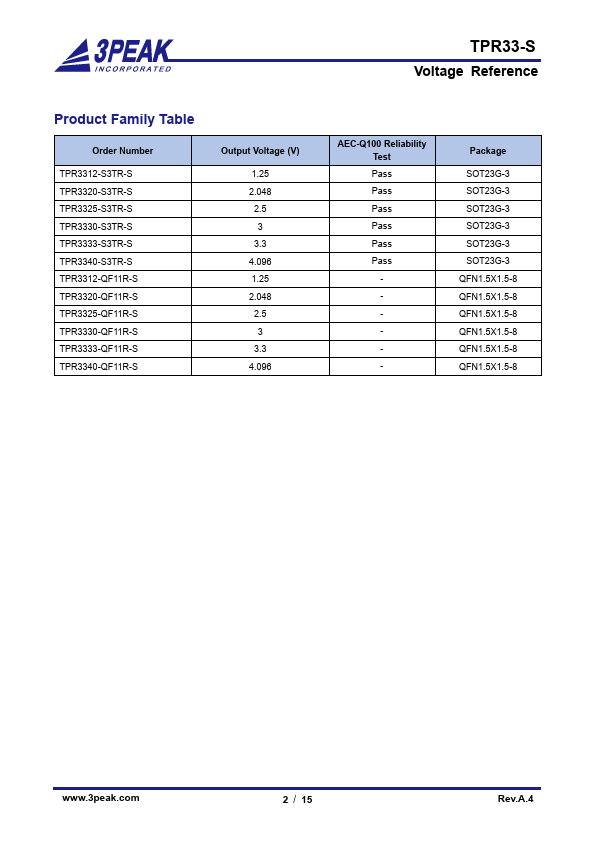

TPR3325-QF11R-S Datasheet Preview Page 2 TPR3325-QF11R-S Datasheet Preview Page 3

Datasheet Details

Part number:

TPR3325-QF11R-S, TPR33-S

Manufacturer:

3PEAK

File Size:

1.19 MB

Description:

Voltage reference.

Note:

This datasheet PDF includes multiple part numbers: TPR3325-QF11R-S, TPR33-S.
Please refer to the document for exact specifications by model.
