TPR33 Voltage Reference

TPR33 Description

TPR33 Voltage Reference .
The TPR33 is a voltage reference with guaranteed temperature stability over the entire operating temperature range.

TPR33 Features

* Fixed Output Voltage:
* 1.25 V, 2.048 V, 2.5 V, 3 V, 3.3 V, 4.096 V
* High Initial Accuracy and Low Temperature Coefficient
* Max 0.15%
* 30 ppm/°C
* Operation Temperature Range:
* 40°C to 125°C
* Output Noise: 50 μVpp of TPR3325
* Quiescent Curre

TPR33 Applications

* Power
* Instrumentation

📥 Download Datasheet

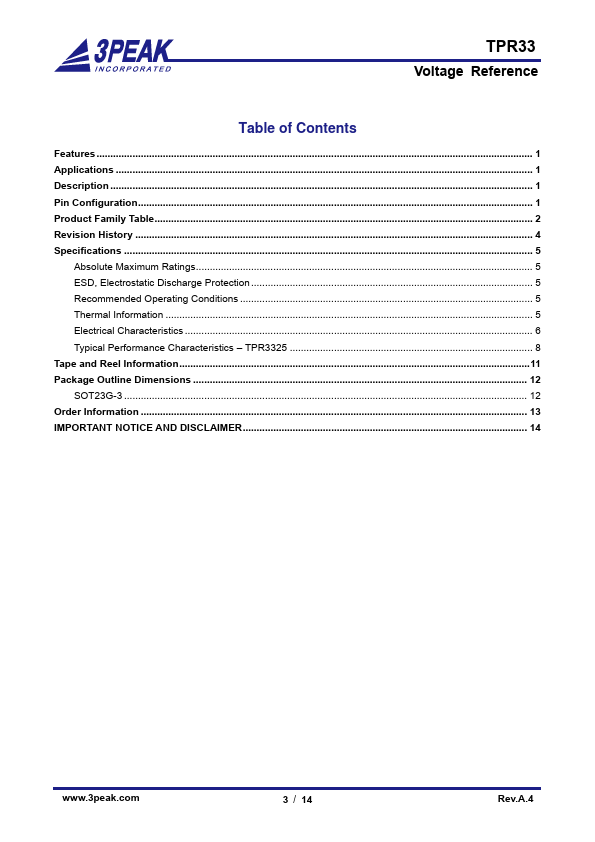

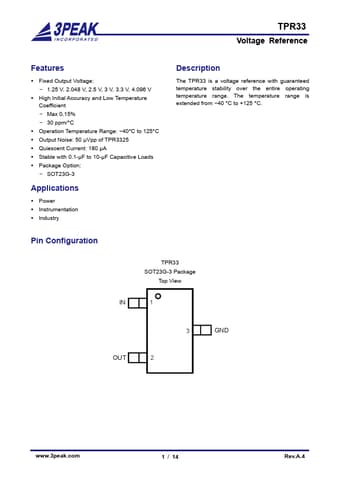

Preview of TPR33 PDF

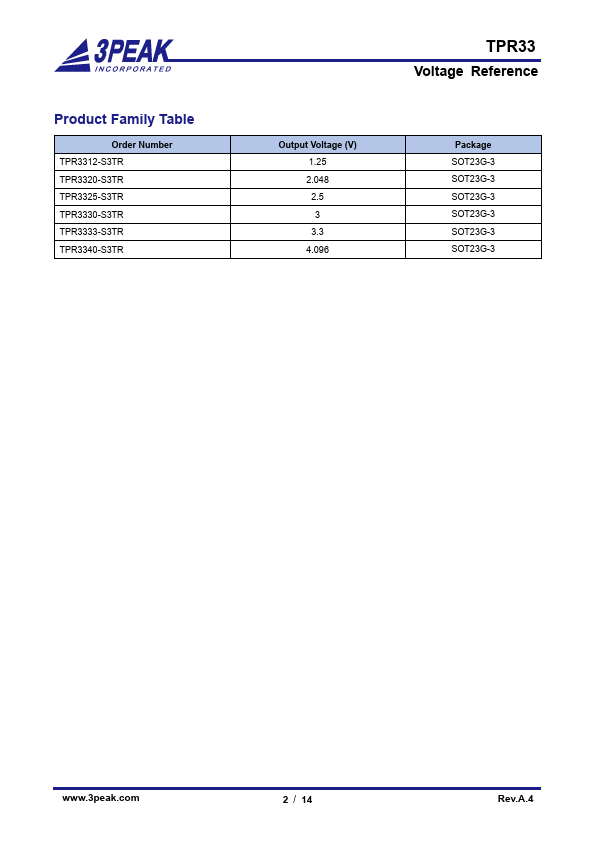

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPR33
Manufacturer
3PEAK
File Size
1.05 MB
Datasheet
TPR33-3PEAK.pdf
Description
Voltage Reference
